Vogele Vision 5200-2 Hydraulic Diagrams

Data Size: 5.56
File Type: tif
Language: German, English
Manufacturer: Vogele
Applicable Machine: Road Pavers
Type Of Manual: Hydraulic Diagrams, Hydraulic Hose Diagrams
Machine Model: Vogele Vision 5200-2 Road Pavers

List Contents:

Vogele Road Pavers Vision 5200-2 Hydraulic Diagrams

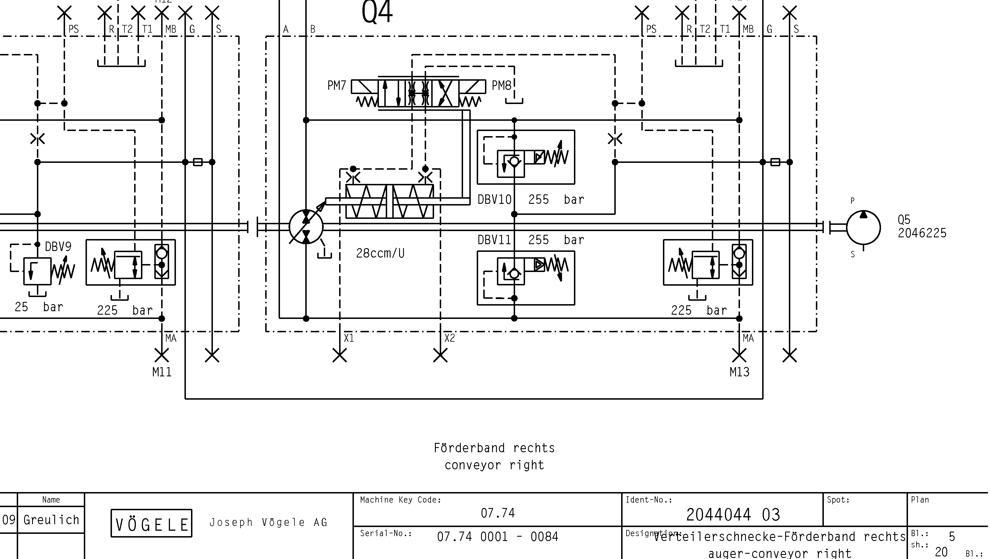

Vision 5200-2 Hydraulic Diagrams 2044044_03
Vision 5200-2 Hydraulic Diagrams 2142181_00
Vision 5200-2 Hydraulic Diagrams 2188047_00
Vogele Road Pavers Vision 5200-2 Hydraulic Hose Diagrams
Vision 5200-2 Hydraulic Hose Diagrams 2073029_01
Vision 5200-2 Hydraulic Hose Diagrams 2142202_01
Vision 5200-2 Hydraulic Hose Diagrams 2188050_01
