Vogele Vision 5203-2i Hydraulic Diagrams

Data Size: 6.37 MB
File Type: tif
Language: German, English
Manufacturer: Vogele
Applicable Machine: Road Pavers
Type Of Manual: Hydraulic Diagrams, Hydraulic Hose Diagrams
Machine Model: Vogele Vision 5203-2i Road Pavers

List Contents:

Vogele Road Pavers Vision 5203-2i Hydraulic Diagrams

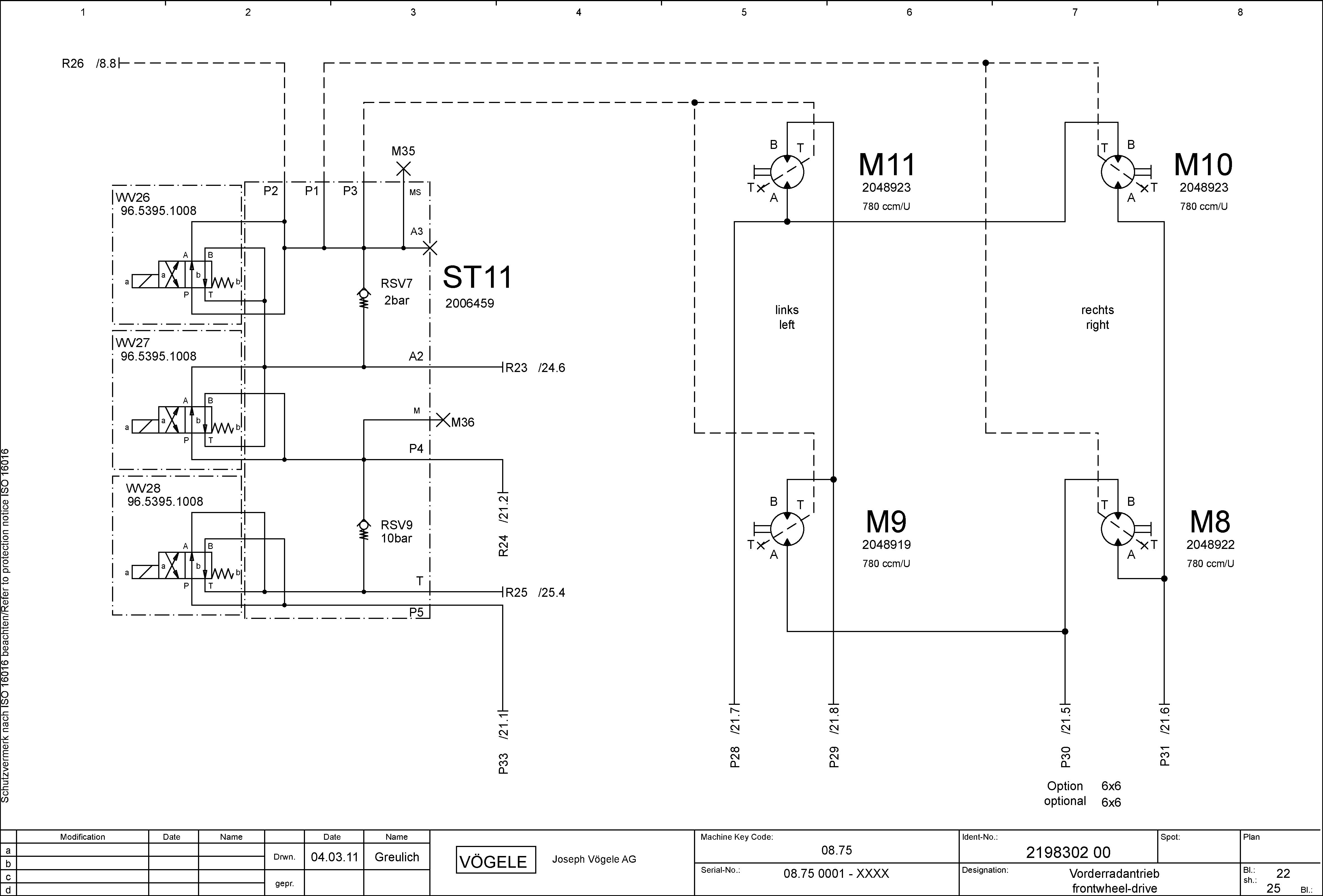

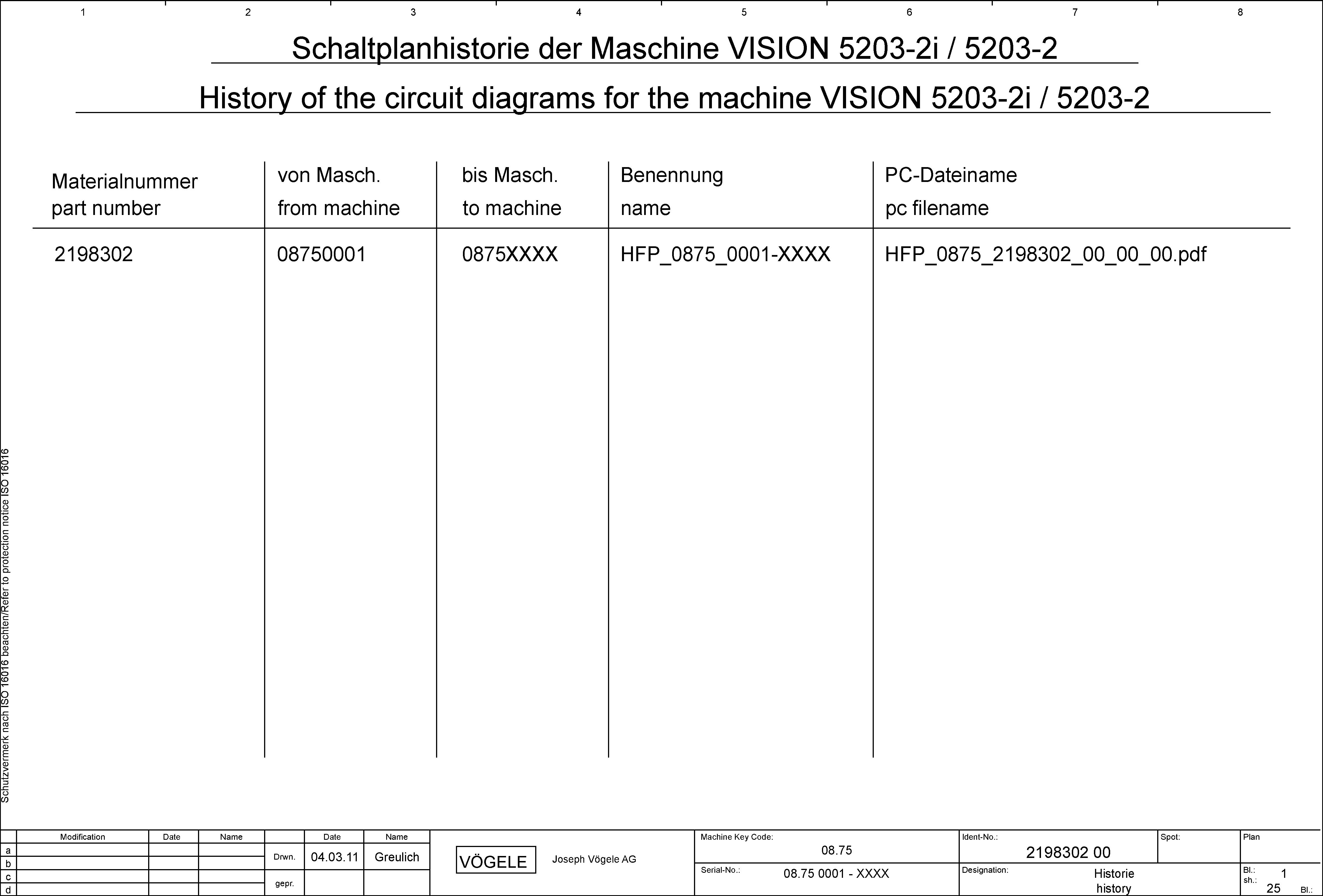

Vision 5203-2i Hydraulic Diagrams 2198302_00
Vision 5203-2i Hydraulic Diagrams 2273414_00
Vogele Road Pavers Vision 5203-2i Hydraulic Hose Diagrams
Vision 5203-2i Hydraulic Hose Diagrams 2198304_01
Vision 5203-2i Hydraulic Hose Diagrams 2273415_00
Vision 5203-2i Hydraulic Hose Diagrams 2283126_00
