Wirtgen Hamm HD 150 TT H1.68 2020713 Parts Catalog

Data Size: 15.1 MB
File Type: PDF
Language: English
Manufacturer: Wirtgen Hamm
Applicable Machine: Roller
Type of Document: Parts Manual
Machine Model: Hamm HD 150 TT
Date: 2013
Page: 205 Pages

List Contents:

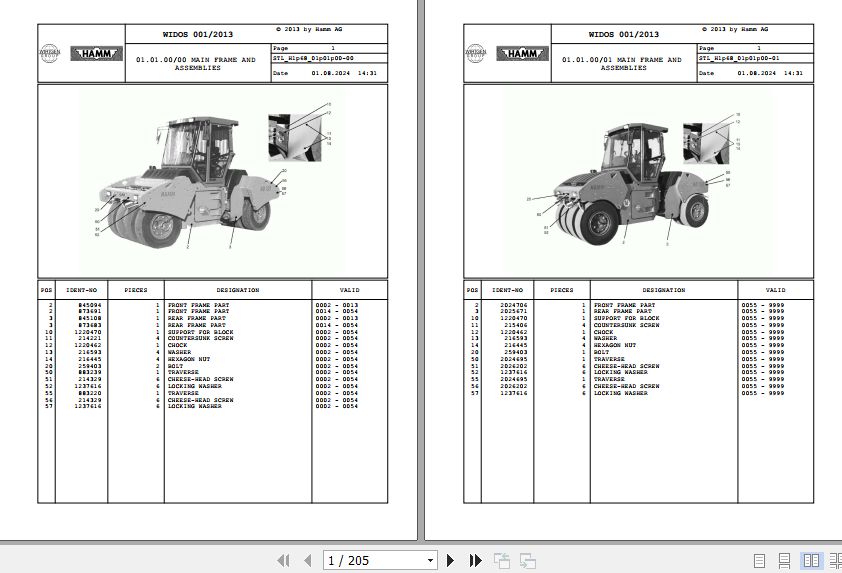

Main Frame And Assemblies
Canopies And Covers
Sticker Arrangement
Sound-Insulation
Operator Platform
Tilting Hydraulic (Operator Platform)
Operator's Seat With Adjustment
Roll Over Protection
Handles
Instrument Panel Covering
Operator's Cabin
Cabin-Heating
Pump Drive And Engine Assembly Version 2012
Fuel System
Fuel Filter
Air Filter System
Exhaust System
Cooling (Engine Hydraulic Oil)
Variable Displacement Pump (Drive)
Valve Block (Track Offset)
Filter (Hydraulic Oil)
Gear Motor (Drive Of Engine Cooling)
Pump (Hydraulic Steering System)
Valve Block (Asc)
Instrument Panel
Electrical System (With Lighting)
Electrical System (Asc)
Electrical System (Radio)
Tire Equipment Michelin
Drive Shifting
Parking Brake
Centre PIVot Assembly
Steering Fork Bearing (Tires Front)
Steering Fork Bearing (Tires Rear)
Steering
Steering Column Adjustable

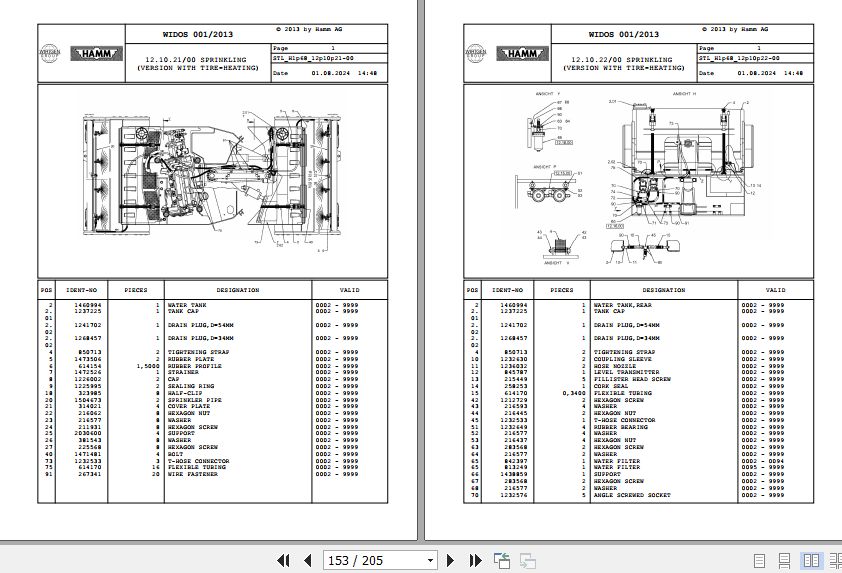

Sprinkling (Version Without Tire-Heating)
Sprinkling (Version With Tire-Heating)
Water Pump
Edge Pressing And Cutting Device
Add-On Pieces (Edge Pressing And Cutting Device)
Hydraulic System (Edge Pressing And Cutting Device)
Sprinkling (Edge Pressing And Cutting Device)
Thermal Scuffle Version Without Tire-Heating
Thermal Scuffle Version With Tire-Heating
Tire-Heating
Sun Roof
Lamp Protection
Locking Device (Water Tank)
Additional Lighting, Fops
Additional Lighting, Rops
Air Conditioning
Tire Filling System
Rotary Beacon (Driver's Cabin)
Rotary Beacon (Rops)
Revolution Counter (Diesel Engine)
Position Indicator
Speedometer
Battery Isolating Switch Control
Tüv Italy
Scraper (Tires)
