Wirtgen Hamm HW90 H1.23 1227440 Parts Catalog

Data Size: 8.24 MB
File Type: PDF
Language: English
Manufacturer: Wirtgen Hamm
Applicable Machine: Roller
Type of Document: Parts Manual
Machine Model: Hamm HW90
Date: 2013
Page: 144 Pages

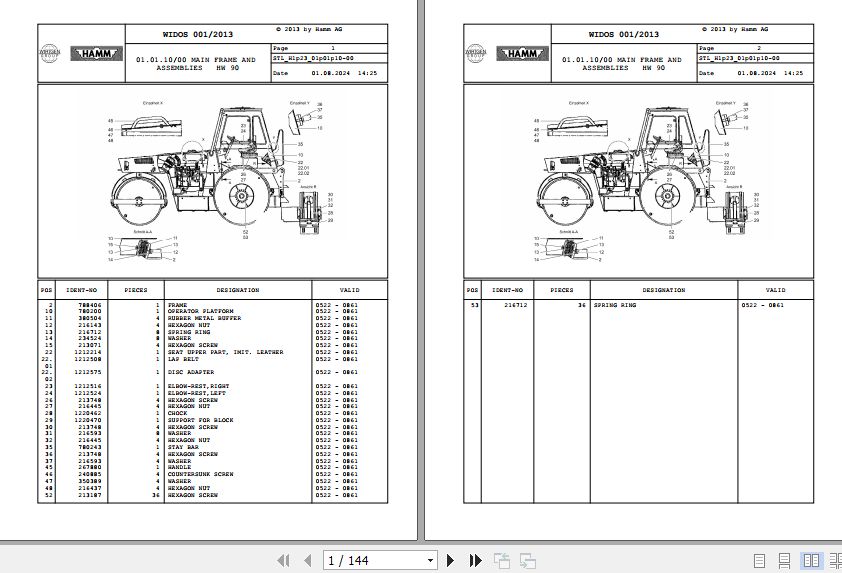

List Contents:

Main Frame And Assemblies Hw 90
Main Frame And Assemblies Hw 90b
Canopies And Covers Hw 90b
Sticker Arrangement
Sound-Insulation Hw 90b
Roll Over Protection
Instrument Panel Covering
Operator's Cabin (Large) Hw 90b
Operator's Cabin (Large, Low) Hw 90b
Cabin-Heating (Small Operator's Cabin) Hw 90
Cabin-Heating (Large Operator's Cabin) Hw 90b
Pump Drive And Engine Assembly (Engine 4 Cyl. )
Fuel System
Air Filter System
Exhaust System (Engine 4 Cyl.) Hw 90b
Variable Displacement Pump (Drive)
DrIVing Gear (Variable Displacement Pump - Drive)
Steering Box (Variable Displacement Pump - Drive)
Control Device (Variable Displacement Pump - Drive)
Cover Plate (Variable Displacement Pump - Drive)
Planetary Gear
Instrument Panel
Electrical System (Operator's Cabin) Hw 90
Rear Axle With Drive (Rigid Axle)
Advance Drive
Drive Shifting
Drive Shifting (4 Drive Levers)
Parking Brake
Steering Fork Bearing (Roller Drum Front)
Steering Hw 90
Sprinkling
Water Pump
Edge Pressing And Cutting Device (Stroke 185 Mm)
Edge Pressing And Cutting Device (Stroke 450 Mm)
Hydraulic System (Edge Press. Cutt. Device, Stroke 185 Mm)
Sprinkling (Edge Pressing And Cutting Device, Stroke 185 Mm)
Track Indicator
Asphalt Plough (Stroke 450 Mm)
Trailer Coupling
Spring-Type Holder
Rotary Beacon
Speedometer
Distance Meter
Scraper (Front)
Scraper (Coco Mat)
Roller Drum Front
Roller Drum Rear
Hamm, Roller, HW90, Parts,
