Wirtgen SP 1200 Hydraulic Diagrams

Data Size: 4.63 MB
File Type: tif
Language: English, German
Manufacturer: Wirtgen
Applicable Machine: Slipform Pavers, Hot Recyling Machines
Document: Hydraulic Diagrams, Hydraulic Hose Diagrams
Machine Model: Wirtgen Slipform Pavers SP 1200

List Contents:

-Wirtgen Slipform Pavers SP 1200 Hydraulic Diagrams

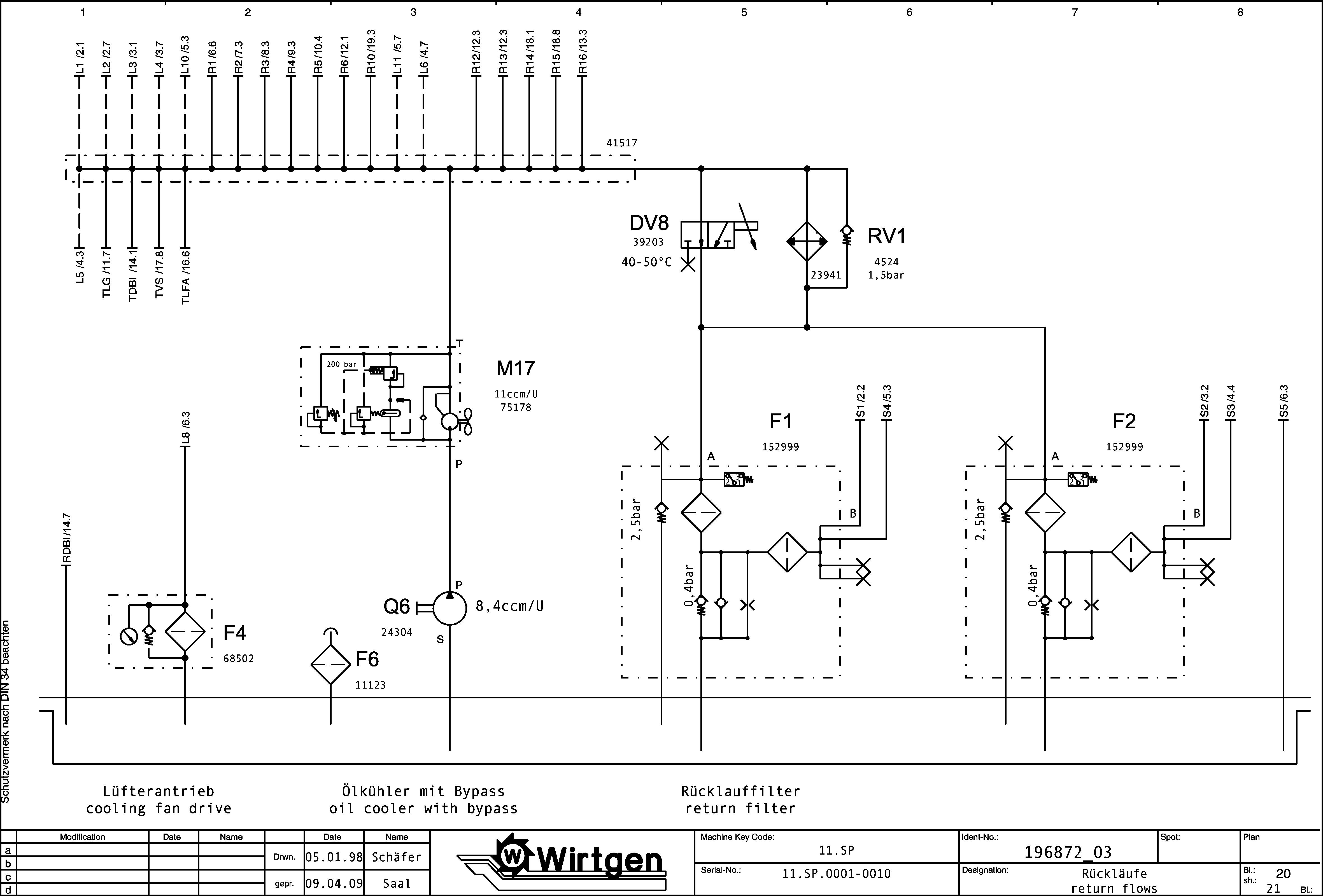

SP 1200 Hydraulic Diagrams 196872_03
SP 1200 Hydraulic Diagrams 2126062_04
SP 1200 Hydraulic Diagrams 2173989_00
-Wirtgen Slipform Pavers SP 1200 Hydraulic Hose Diagrams
SP 1200 Hydraulic Hose Diagrams 198681_03
SP 1200 Hydraulic Hose Diagrams 2126065_04
