Wirtgen SP 850 Vario Hydraulic Diagrams

Data Size: 6.36 MB
File Type: tif
Language: English, German
Manufacturer: Wirtgen
Applicable Machine: Slipform Pavers, Hot Recyling Machines
Document: Hydraulic Diagrams, Hydraulic Hose Diagrams
Machine Model: Wirtgen SP 850 Vario Slipform Pavers

List Contents:

-Wirtgen Slipform Pavers SP 850 Vario Hydraulic Diagrams

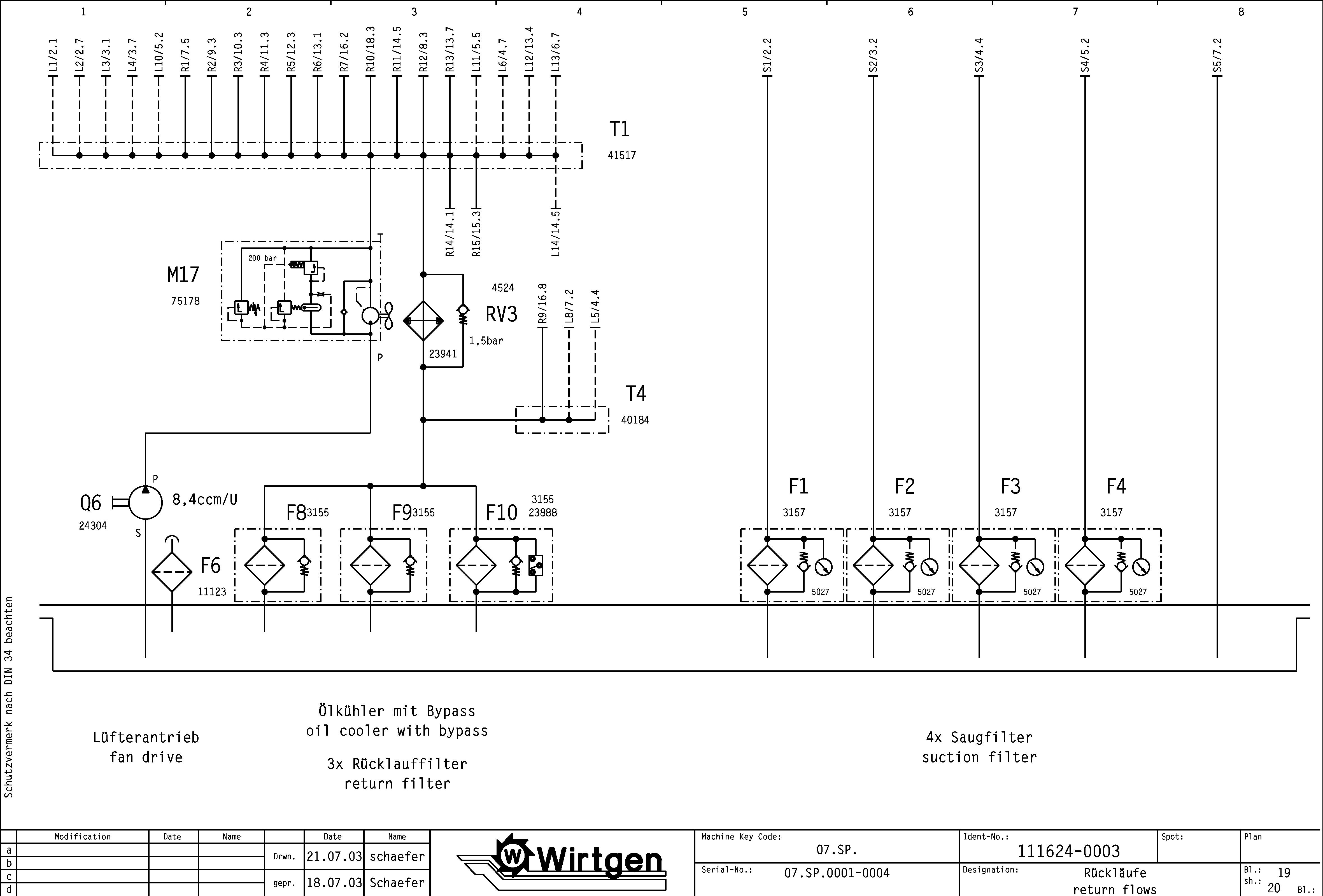

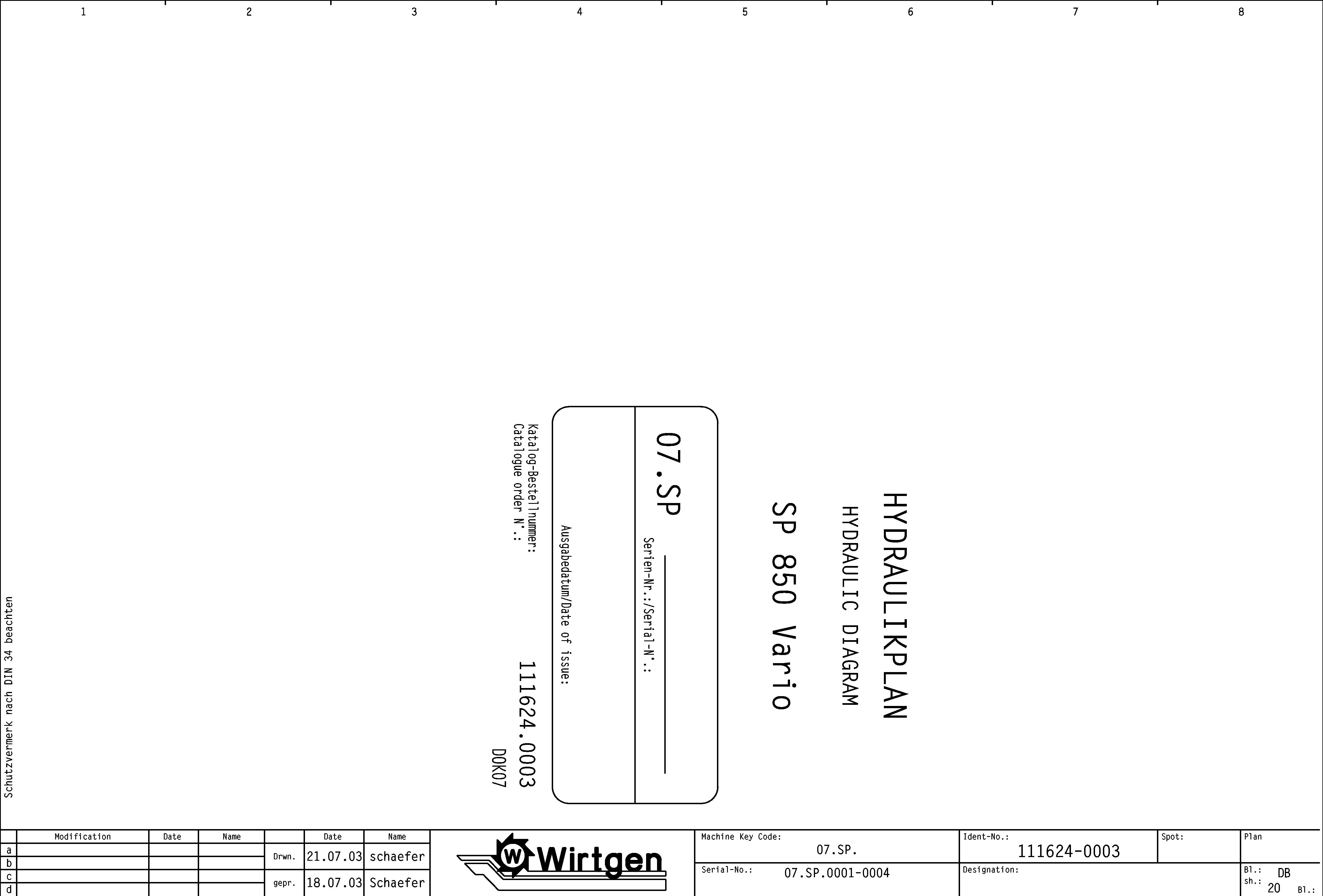

SP 850 Vario Hydraulic Diagrams 111624_03
SP 850 Vario Hydraulic Diagrams 157515_04
SP 850 Vario Hydraulic Diagrams 2116456_03
SP 850 Vario Hydraulic Diagrams 2161160_00
-Wirtgen Slipform Pavers SP 850 Vario Hydraulic Hose Diagrams
SP 850 Vario Hydraulic Hose Diagrams 112398_01
SP 850 Vario Hydraulic Hose Diagrams 157516_02
SP 850 Vario Hydraulic Hose Diagrams 2116457_04
