Wirtgen TCM 850 TCM 1600 Hydraulic Diagrams

Data Size: 2.10 MB
File Type: tif
Language: English, German
Manufacturer: Wirtgen
Applicable Machine: Slipform Pavers, Hot Recyling Machines
Document: Hydraulic Diagrams, Hydraulic Hose Diagrams
Machine Model: Wirtgen TCM 850 TCM 1600 Slipform Pavers

List Contents:

-Wirtgen Slipform Pavers TCM 850 TCM 1600 Hydraulic Diagrams
TCM 850 TCM 1600 Hydraulic Diagrams 107520_02
TCM 850 TCM 1600 Hydraulic Diagrams 115710_02

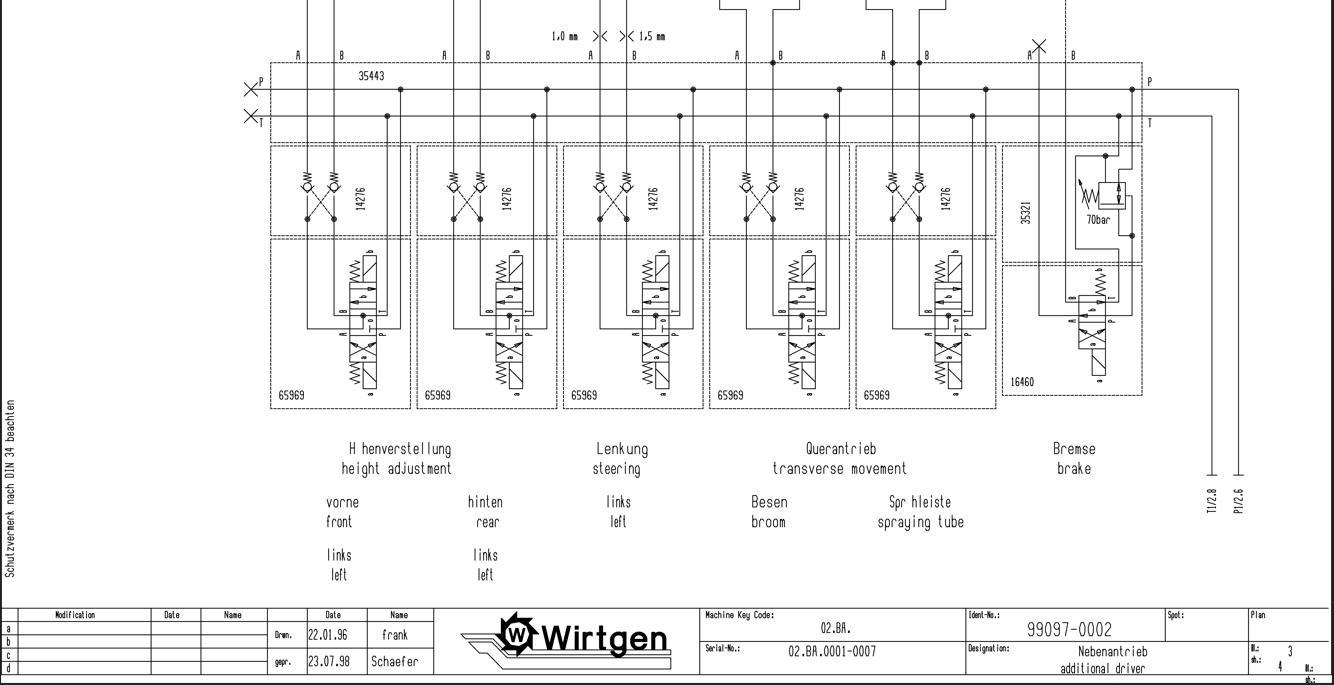

TCM 850 TCM 1600 Hydraulic Diagrams 99097_02
-Wirtgen Slipform Pavers TCM 850 TCM 1600 Hydraulic Hose Diagrams
TCM 850 TCM 1600 Hydraulic Hose Diagrams 107516_01

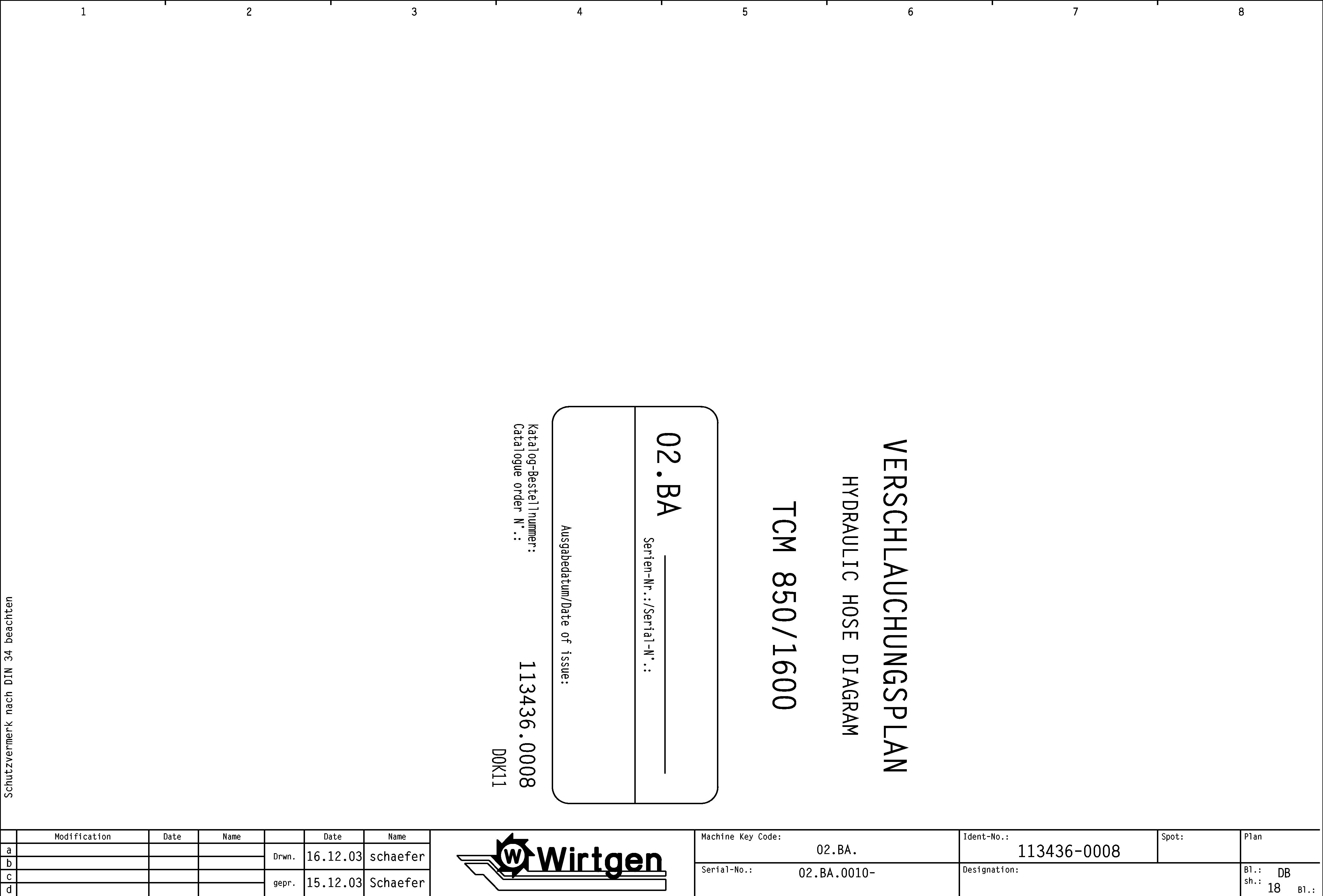

TCM 850 TCM 1600 Hydraulic Hose Diagrams 113436_08
