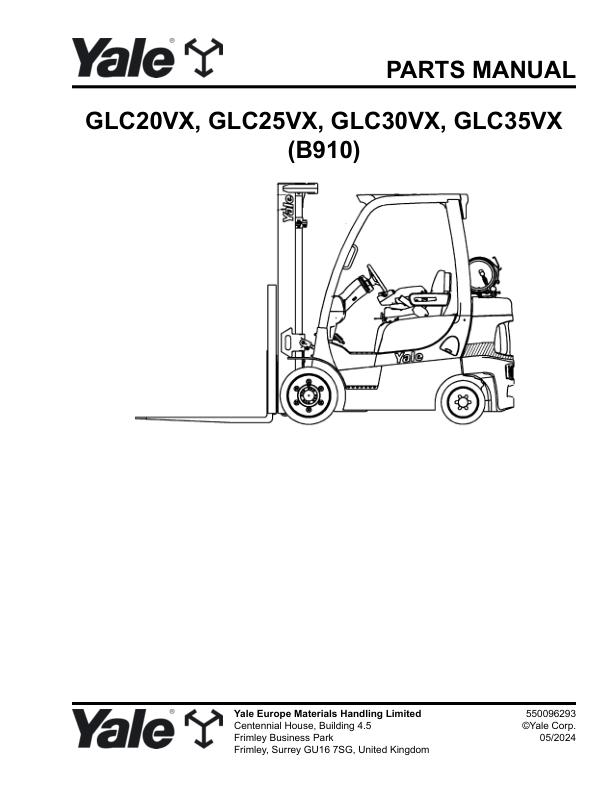

Yale B910E GLC20VX GLC25VX GLC30VX GLC35VX Parts Catalog 550096293 05-2024

Yale B910E GLC20VX GLC25VX GLC30VX GLC35VX Parts Catalog 550096293 05-2024

Size: 12.07 MB
Language: English
Machine: Forklift
Document: Parts Catalog
Machine Model: GLC20VX, GLC25VX, GLC30VX, GLC35VX (B910)
Part Number: 550096293
Publication Date: 05-2024
Pages: 620 Pages

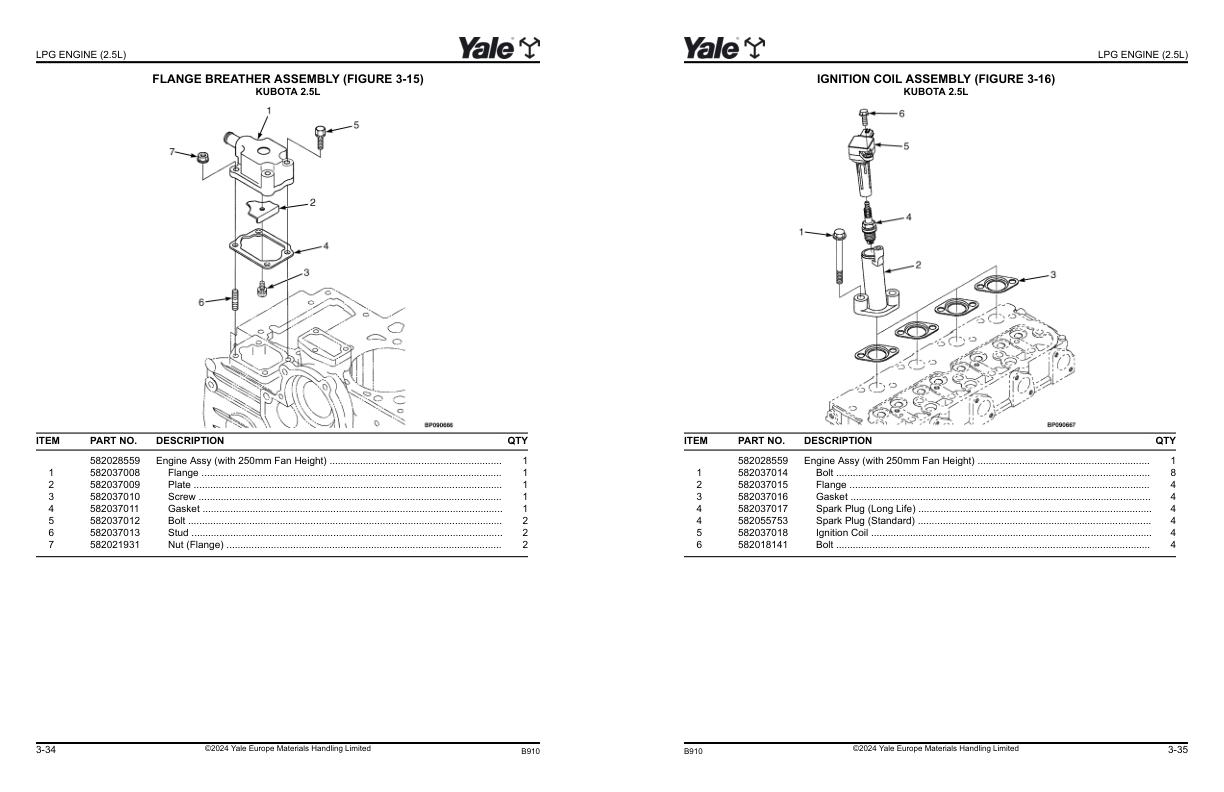

The Bookmarks of Yale B910E GLC20VX GLC25VX GLC30VX GLC35VX Parts Catalog 550096293 05-2024:
General Truck
Counterweight
Overhead Guard
Hood
Cowl Mounting
Floorplates And Covers
Fenders
Full Suspension Seat Electro-Hydraulic - Sheet 1 Of 4
Full Suspension Seat Manual Hydraulic - Sheet 2 Of 4
Full Suspension Seat Recliner And Damper Kits - Sheet 3 Of 4
Full Suspension Seat Service Kits For Non Swivel And Swivel - Sheet 4 Of 4
Armrest Assembly Mini-Lever Modules - Full Suspension Seat
Labels Exterior
Labels Interior
Mini Lever Module Labels Hydraulic Control Functions
Hydraulic Control Labels Manual Control Levers
Lpg Engine (2.2l)
Engine Mount Mazda 2.2l Lpg
Flywheel And Housing Mazda 2.2l Lpg
Cooling System Mazda 2.2l Lpg
Exhaust Mazda 2.2l Lpg
Assembled Engine Mazda 2.2l Lpg
Cylinder Head And Cover Mazda 2.2l Lpg
Cylinder Block Mazda 2.2l Lpg
Crankshaft And Pistons Mazda 2.2l Lpg
Camshaft And Valves Mazda 2.2l Lpg
Engine Cooling Mazda 2.2l Lpg
Oil Pump And Filter Mazda 2.2l Lpg
Timing Gear Cover And Oil Pan Mazda 2.2l Lpg
Exhaust Manifold Mazda 2.2l Lpg
Intake Manifold Mazda 2.2l Lpg
Emission Control System Mazda 2.2l Lpg
Lpg Engine (2.5l)
Cooling System With External Oil Cooler - Kubota 2.5l Lpg
Cooling System Without External Oil Cooler - Kubota 2.5l Lpg
Engine Mount Kubota 2.5l Lpg
Exhaust With Catalytic Converter
Flywheel And Starter Kubota 2.5l Lpg
Flywheel Housing Kubota 2.5l Lpg
Cylinder Block Assembly Kubota 2.5l
Oil Pan Assembly Kubota 2.5l
Cylinder Head Assembly Kubota 2.5l
Cylinder Head Cover Assembly Kubota 2.5l
Dipstick Tube Assembly Kubota 2.5l
Oil Pump Assembly Kubota 2.5l
Crankshaft Bearing Assembly Kubota 2.5l
Crankshaft And Piston Assembly Kubota 2.5l
Flange Breather Assembly Kubota 2.5l
Ignition Coil Assembly Kubota 2.5l
Cover Assembly Kubota 2.5l
Valve And Rocker Arm Assembly Kubota 2.5l
Intake Manifold Assembly And Fuel System - Kubota 2.5l
Exhaust Manifold Assembly Kubota 2.5l
Oil Cooler Assembly Kubota 2.5l - 250 Mm Fan Height
Oil Filter Assembly Kubota 2.5l
Alternator And Pulley Assembly Kubota 2.5l
Water Flange And Thermostat Assembly Kubota 2.5l
Water Pump Assembly Kubota 2.5l
Fan Pulley Assembly Kubota 2.5l
Ecu Assembly Kubota 2.5l
Camshaft Assembly Kubota 2.5l
Wire Harness Assembly Kubota 2.5l
Gear Case Assembly Kubota 2.5l - 250 Mm Fan Height
Fuel System
Air Inlet Kubota 2.5l Lpg
Fuel System Kubota 2.5l Lpg
Lpg Fuel Group (2.5l) Premium Low Fuel Sensor - Section 1 Of 2
Lpg Fuel Group (2.5l) Premium Low Fuel Sensor - Section 2 Of 2
Lpg Fuel Group (2.5l) Standard Low Fuel Sensor - Section 1 Of 2
Lpg Fuel Group (2.5l) Standard Low Fuel Sensor - Section 2 Of 2
Air Intake System Mazda 2.2l Lpg
Air Intake System Air Filter Assembly
Air Intake System Pre-Cleaner And Duct
Fuel Supply System Mazda 2.2l Lpg
Fuel System Mazda 2.2l Lpg
Fuel System Hoses And Attaching Parts Mazda 2.2l Lpg
Mixer And Throttle Body Assembly Mazda 2.2l Lpg
Electronic Pressure Regulator Assembly Mazda 2.2l Lpg
Electronic Pressure Regulator Kit Mazda 2.2l Lpg
Lpg Bracket Assembly Swing Out With Fabric Strap
Lpg Bracket Assembly Swing Out, Drop Down With Fabric Strap
Throttle Linkage Lpg
Throttle Pedal Assembly And Attaching Parts Standard Pedal
Throttle Pedal Assembly And Attaching Parts Foot Directional Control Pedal
Electrical System
Electrical System Chassis
Cowl Electrical Electro-Hydraulics - With Operator Presence System
Cowl Electrical Manual Hydraulic - With Operator Presence System
Engine Wire Harness And Attaching Parts 2.5l Kubota Lpg - Single Speed Transmission
Engine Electrical Components Lpg - Mazda 2.2l
Engine Control Module Mazda 2.2l Lpg
Engine Electrical System Lpg, Sheet 1 Of 2 - Mazda 2.2l
Engine Electrical System Lpg, Sheet 2 Of 2 - Mazda 2,2l
Engine Safety Electrical Mazda 2.2l
Distributor Mazda 2.2l Lpg
Fuel System Sensors Mazda 2.2l Lpg
Mini-Lever Controls With Armrest - Three Function
Mini-Lever Controls With Armrest - Four Function
Transmission Electrical System
Mast Electrical
Load Weigh Electrical
Seat Belt Switch Adapter
Power Distribution Module
Instrument Cluster
Work, Rear Drive, And Brake/Tail Lights
Wire Harness Rh Chassis - Mazda
Wire Harness Rh Chassis With Seat Belt Sequence Module - Mazda 2.2l
Wire Harness Rh Chassis - Kubota 2.5l
Wire Harness Rh Chassis With Seat Belt Sequence Module - Kubota 2.5l Lpg
Wire Harness (Engine) Mazda Lpg
Wire Harness (Engine) Kubota 2.5l Lpg
Wire Harness Adapter Low Fuel Pressure
Wire Harness Alternator To Battery Disconnect Switch - Kubota 2.5l
Wire Harness Cowl With Forward/Reverse Lever - With Hydraulic Pump Solenoid
Wire Harness Cowl With Forward/Reverse Lever - Without Return To Set Tilt
Wire Harness Cowl With Foot Directional Control Pedal - With Hydraulic Pump Solenoid
Wire Harness Cowl With Foot Directional Control Pedal - With Return To Set Tilt
Wire Harness Electronic Control Valve - 3 Function
Wire Harness Electronic Control Valve - 4 Function
Wire Harness Transmission - Single Speed
Wire Harness Lights
Wire Harness Hydraulic Oil Cooler - Three Or Four Function (Optional)
Transmission
Transmission Cooling Without Air Oil Cooler - Mazda 2.2l Lpg
Transmission Cooling With Air Oil Cooler - Mazda 2.2l And Kubota 2.5l Lpg
Transmission Cooling Kubota 2.5l Lpg - Square Wave Without Oil Cooler With Single Speed Transmission
Transmission Mount Single Speed - Aluminum Chain Drive
Torque Converter Mazda 2.2l Lpg
Torque Converter Kubota 2.5l Lpg
Transmission Housing And Assembly Single Speed - Aluminum Chain Drive
Charge Pump Assembly
Torque Converter Housing And Attaching Parts Single Speed - Aluminum Chain Drive
Stator Support Housing
Input/Forward Clutch Single Speed Transmission
Counter/Reverse Clutch Single Speed Transmission
Drive Axle
Drive Tires And Wheels
Steering System
Steering System
Steering Column Assembly Non-Isolated
Steering Control Unit
Steering Axle
Steering Cylinder
Steer Tires And Wheels
Brake System
Brake Linkage Single Pedal
Brake Linkage Dual Pedal
Park Brake
Master Cylinder
Brake Assembly
Hydraulic System
Hydraulic Supply And Return
Gear Pump Assembly Low Pressure
Gear Pump Assembly High Pressure
Hydraulic Filter
Tilt/Hoist And Auxiliary Hoses
Auxilliary Hoses Three Stage Full Free Lift - Two Stage Limited Free-Lift
Tilt Cylinder And Mast Installation
Tilt Cylinders Glc20-25vx
Tilt Cylinders Glc30-35vx
Hand Levers Three Function - Without Detented Levers
Hand Levers Three Function - With Detented Levers
Hand Levers Four Function - Without Detented Levers
Hand Levers Four Function - With Detented Levers
Control Valve Assembly Manual Control - Three And Four Function
Control Valve Lockout Group Manual Control Valve
Manual Valve Anti Stall Group
Valve Assembly, Lift And Tilt Manual Control Valve - Three And Four Function
Auxiliary Sections, One And Two Manual Control Valve - Three And Four Function
Outlet Section Manual Control Valve - Three And F0ur Function
Hydraulic Control Valve Electronic Valve Assembly - Three And Four Function
Hydraulic Control Valve Electronic Valve Inlet Section - Three And Four Function
Hydraulic Control Valve Electro Hydraulic Poppet Valve - Hoist And Lower
Hydraulic Control Valve Electronic Valve Tilt Section - Three And Four Function
Hydraulic Control Valve Electronic Valve Auxiliary One Section - Three And Four Function
Hydraulic Control Valve Electronic Valve Auxiliary Two Section - Four Function
Hydraulic Control Valve E-Hydraulics Outlet Section
Mast-Two Stage Limited Free-Lift
Outer Mast Two Stage Limited Free-Lift - F507-F562
Inner Mast Two Stage Limited Free Lift - F507-F562
Main Lift Two Stage Limited Free Lift - F507-F562
Main Lift Cylinder Two Stage Limited Free Lift - F507-F562
Main Lift Cylinder Two Stage Limited Free Lift - Glc20-25vx (High Lift)
Carriage Two Stage Limited Free-Lift - F507-F562
Mast-Three Stage Full Free-Lift
Outer Mast Three Stage Full Free Lift - F508-F563
Intermediate Mast Three Stage Full Free-Lift - F508-F563
Inner Mast Three Stage Full Free-Lift - F508-F563
Main Lift Cylinder And Attaching Parts Three Stage Full Free-Lift - F508-F563
Main Lift Cylinder Three Stage Full Free-Lift - F508-F563
Free-Lift Cylinder And Attaching Parts Three Stage Full Free-Lift - F508-F563
Free-Lift Cylinder Three Stage Full Free-Lift - F508-F563
Carriage Three Stage Full Free-Lift
Carriage Heavy Duty - Three Stage Full Free-Lift
Mast-Two Stage Full Free-Lift
Outer Mast Two Stage Full Free Lift - E509-E564
Inner Mast Two Stage Full Free- Lift - E509-E564
Main Lift Two Stage Full Free- Lift - E509-E564
Main Lift Cylinder - Rh Two Stage Full Free- Lift - E509-E564
Main Lift Cylinder - Lh Two Stage Full Free- Lift - E509-E564
Free-Lift Two Stage Full Free- Lift - E509-E564
Free-Lift Cylinder Two Stage Full Free- Lift - E509-E564
Forks, Load Backrest, And Mast Installation
Forks
Forks Optional
Load Backrest Extension
Attachments And Header Hose Group
Auxiliary Tubes Two Stage Limited Free Lift (F507/F562 Series Mast - With Manual And E-Hydraulics Valve Without Quick Disconnect
Auxiliary Tubes Two Stage Limited Free Lift (F507/F562 Series Mast - Manual And E-Hydraulic Valve With Quick Disconnect
Auxiliary Tubes Three Stage Full Free-Lift (F508/F563 Series Mast) - Manual And E-Hydraulics Valve With Quick Disconnect
Auxiliary Tubes Three Stage Full Free-Lift (F508/F563 Series Mast) - Manual And E-Hydraulics Valve Without Quick Disconnect
Auxiliary Quick Disconnect Manifold And Hoses Single Auxiliary With E-Hydraulics - Two Stage Limited Free-Lift (F507/F562 Series Mast) (Three Function)
Auxiliary Quick Disconnect Manifold And Hoses Single Auxiliary With Integral Side-Shift And E-Hydraulics - Two Stage Limited Free-Lift (F507/F562 Series Mast) (Four Function)
Auxiliary Quick Disconnect Manifold And Hoses Dual Auxiliary With E-Hydraulics - Two Stage Limited Free-Lift (F507/F562 Series Mast (Three And Four Function)
Auxiliary Quick Disconnect Manifold And Hoses Three Stage Full Free-Lift (F508/F563 Series Mast) (Single Auxiliary With E-Hydraulics) - Three Function
Auxiliary Quick Disconnect Manifold And Hoses Three Stage Full Free-Lift (F508/F563 Series Mast) (Single Auxiliary With Integral Side-Shift And E-Hydraulics) - Four Function
Auxiliary Quick Disconnect Manifold And Hoses Three Stage Full Free-Lift (F508/F563 Series Mast (Dual Auxiliary With E-Hydraulics)) - Three And Four Function
Integral Side-Shift Carriage Two Stage Limited Free-Lift - F507/F562
Integral Side-Shift Carriage Two Stage Full Free-Lift - E509/E564
Integral Side-Shift Carriage Three Stage Full Free-Lift - F508/F563
Integral Side-Shift Fork Positioner (F507-F562) - Two Stage Limited Free-Lift
Integral Side-Shift Fork Positioner (F508-F563) - Three Stage Full Free-Lift
Integral Side-Shift Cylinder
Fork Positioner Assembly
Integral Side-Shift Hydraulic Hoses Two Stage Limited Free-Lift - F507/F562
Integral Side-Shift Hydraulic Hoses Three Stage Full Free Lift - F508/F563
Integral Side-Shift Hydraulic Hoses Two Stage Full Free Lift - E509 And E564
Header Hose And Attaching Parts Two Stage Limited Free-Lift - F507-F562
Header Hoses And Attaching Parts Two Stage Full Free-Lift - E507-E564
Header Hoses And Attaching Parts Three Stage Full Free-Lift - F508/F563
Options
Accumulator Three Stage Full Free Lift
Strobe Light Led
Back-Up Alarm
Wire Harness Back-Up Alarm
Mirrors
Fire Extinguisher
Red Seat Belt Retractor And Buckle
Field Conversion Kits
Header Hose Conversion Kits Two Stage Limited Free-Lift - F507 Series Mast
Header Hose Conversion Kits Two Stage Limited Free-Lift - F562 Series Mast
Header Hose Conversion Kits Two Stage Full Free-Lift - E509 Series Mast
Header Hose Conversion Kits Two Stage Full Free- Lift - E564 Series Mast
Header Hose Conversion Kits Three Stage Full Free-Lift - F508 Series Mast
Header Hose Conversion Kits Three Stage Full Free Lift - F563 Series Mast
Conversion Kit Connection Hoses
Auxiliary Tube Extension Kit 2 Stg Lfl
Auxiliary Tube Extension Kit (2 Stg Ffl And 3 Stg Ffl)
Auxiliary Tube Extensions Quick Disconnect Fittings
Replacement Kits Led Lights
Add On Option Kits Hydraulic Oil Cooler
Add On Option Kits Miscellaneous
Add On Option Kits Strobe Light
Add On Option Kits Lights
Add On Fork Positioner Kits
Service Kits Wide Hose Sheave
Add On Telemetry Kits Speedshield
Numerical Index
User Support Information

#More Product: Yale Forklift Operators Manual, Parts Catalog, Service Manual
