Yale D807 (ERP1.6-2.0ATF) Service Manual

Yale D807 (ERP1.6-2.0ATF) Service Manual

Size: 26.0 MB
Machine: Forklift
Machine Model: Class 1 D807 (ERP1.6-2.0ATF)
Document: Service Manual, Hydraulic & Electrical Diagrams

List Files:
BRAKE SYSTEM 1800YRM0570-(04-2002)
CAPACITIES AND SPECIFICATIONS 8000YRM0586-(04-2002)

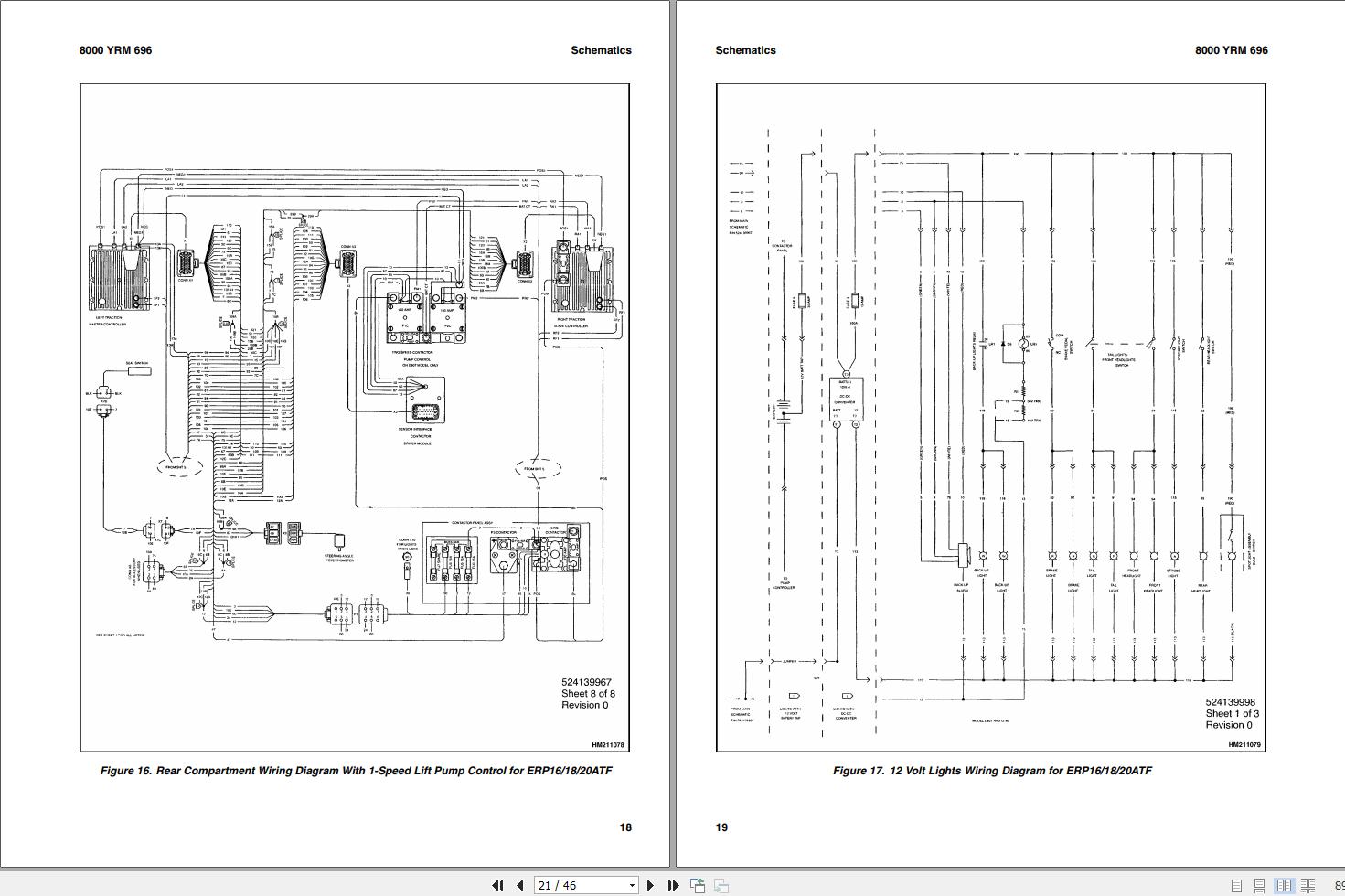

DIAGRAMS 8000YRM0696-(04-2002)
DISPLAY PANEL FOR SEM CONTROLS 2200YRM0942-(08-2007)
ELECTRICAL SYSTEM 2200YRM0698-(04-2002)
FRAME 0100YRM0588-(04-2002)
INDUSTRIAL BATTERY 2240YRM0001-(03-2020)
MAIN CONTROL VALVE 2000YRM0576-(04-2002)

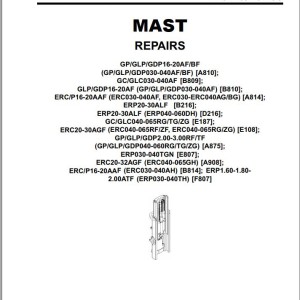

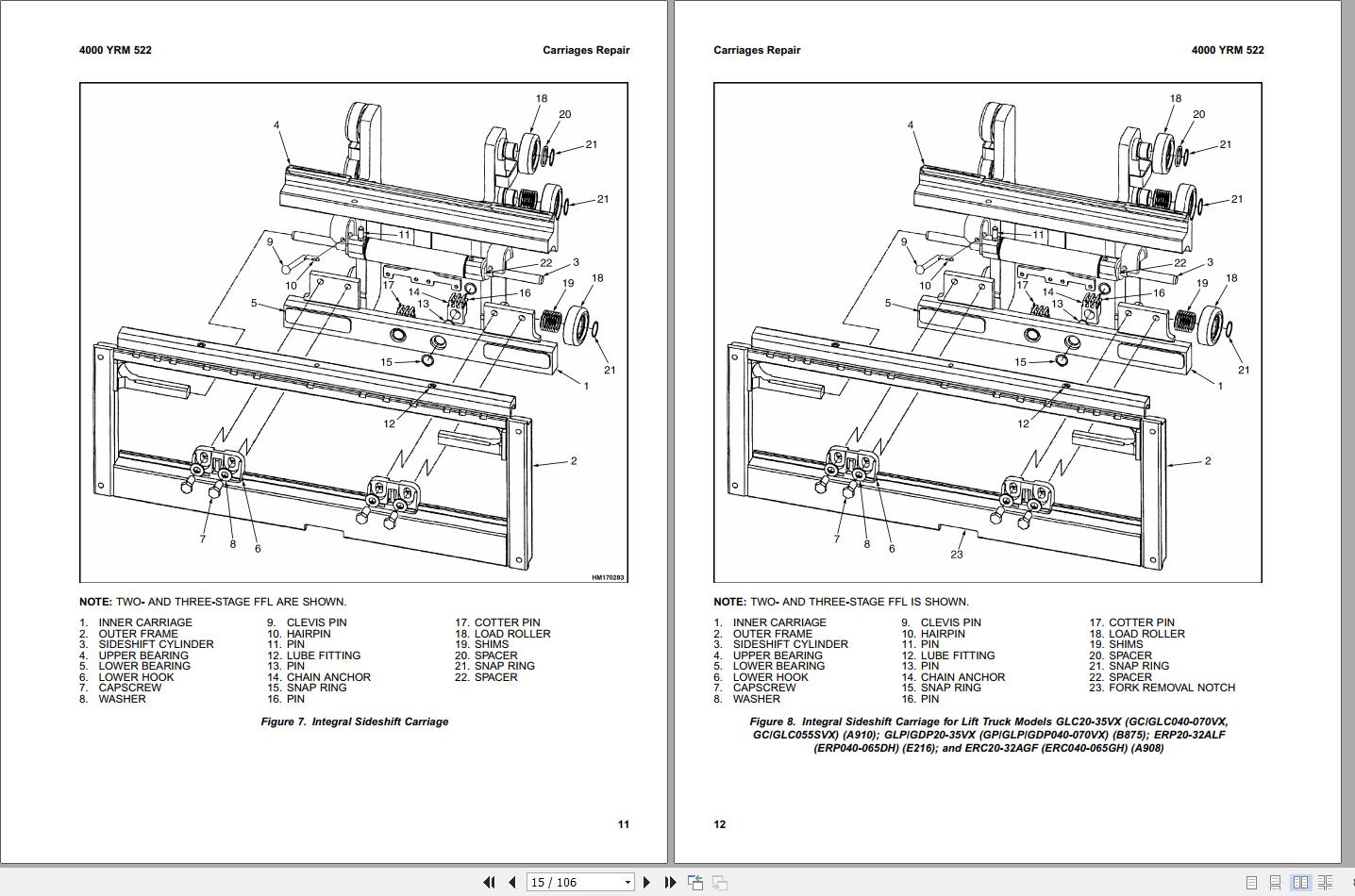

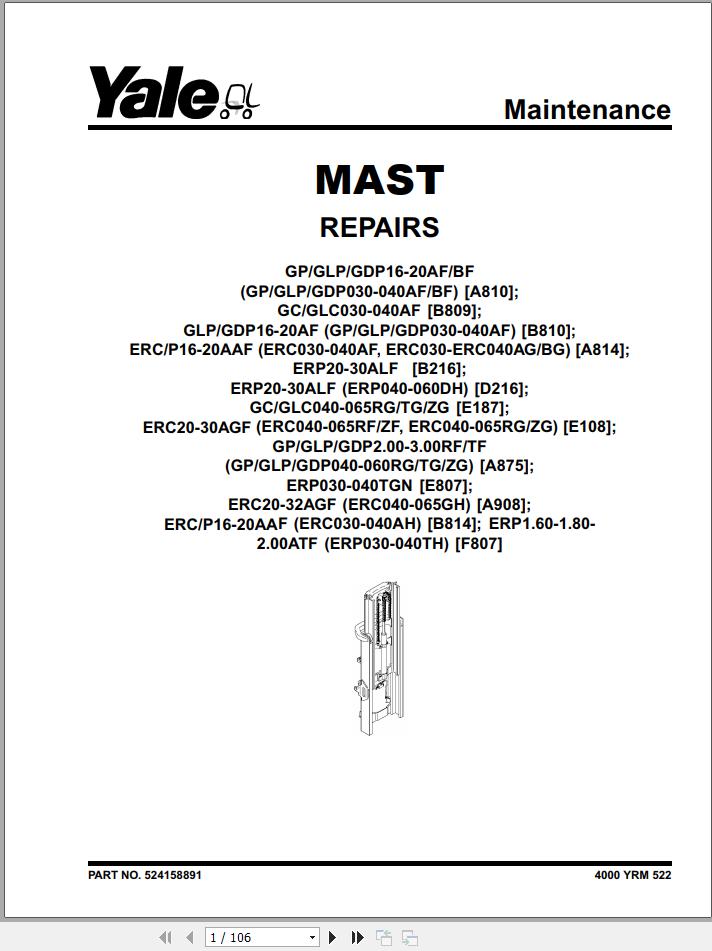

MAST 4000YRM0522-(07-2010)
MAST DESCRIPTION 4000YRM0521-(03-2006)
METRIC AND INCH (SAE) FASTENERS 8000YRM0231-(03-2020)
PERIODIC MAINTENANCE 8000YRM0699-(10-2007)
SR SP TRANSISTOR MOTOR CONTROLLER AND HANDSET 2200YRM0779-(06-2005)
STEERING HOUSING AND STEERING CONTROL UNIT 1600YRM0655-(04-2002)
STEERING SYSTEM 1600YRM0687-(04-2002)
SXSR TRANSISTOR MOTOR CONTROLLER AND HANDSET 2200YRM0697-(08-2005)
TILT CYLINDERS 2100YRM0103-(03-2007)
TRANSAXLE 1300YRM0568-(04-2002)
TROUBLESHOOTING AND ADJUSTMENTS WITH A COMPUTER 2200YRM0947-(08-2007)
