Yale D826 (OS-SS030BE) Service Manual

Yale D826 (OS-SS030BE) Service Manual

Size: 17.7 MB
Machine:Forklift
Machine Model: Class 2 D826 (OS-SS030BE)
Document: Service Manual, Hydraulic & Electrical Diagrams

List Files:
DRIVETRAIN
0100YRM0760 FRAME 01-2012
0630YRM1021 MASTER DRIVE UNIT 03-2021
1600YRM0691 POWER STEERING 07-2002
1800YRM0761 ELECTRIC BRAKE 06-2016
HYDRAULICS
1900YRM0097 HYDRAULIC GEAR PUMPS 05-2012
4000YRM0135 LIFT CYLINDERS 03-2011
4000YRM0763 MAST-DESCRIPTION 01-2012

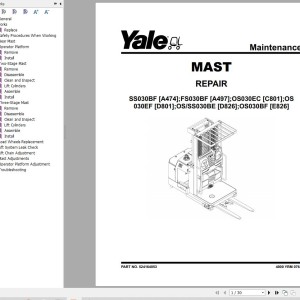

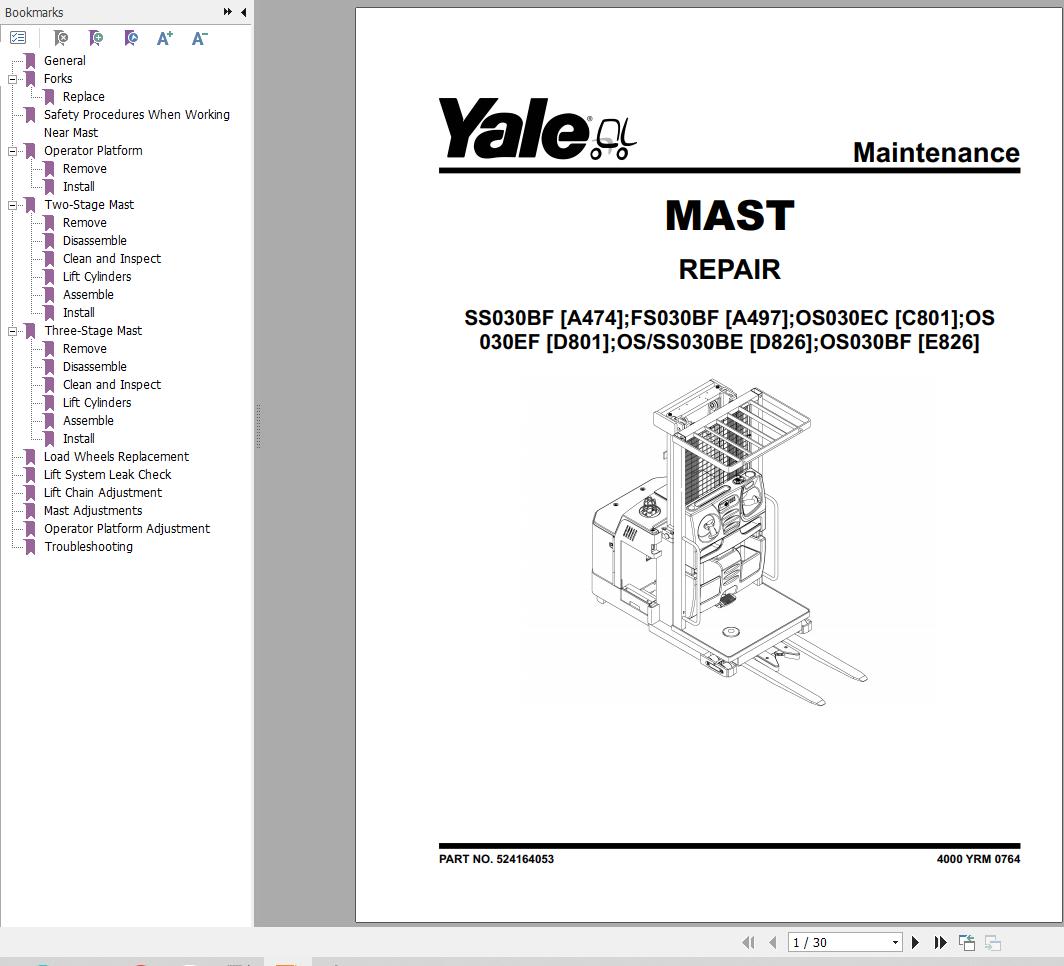

4000YRM0764 MAST 05-2018
ELECTRICAL
2200YRM0933 ELECTRICAL SYSTEM (OS030EC ONLY) 08-2008
2200YRM0956 ELECTRICAL SYSTEM (OS/SS030BE ONLY) 08-2008
2200YRM0957 WIRE GUIDANCE 03-2011
2200YRM1229 WIRE DRIVER MANUAL 01-2012
2200YRM1230 GUIDE WIRE INSTALLATION 05-2017
2240YRM0001 INDUSTRIAL BATTERY 01-2023
REFERENCE MATERIAL
8000YRM0231 METRIC AND INCH (SAE) FASTENERS 02-2023

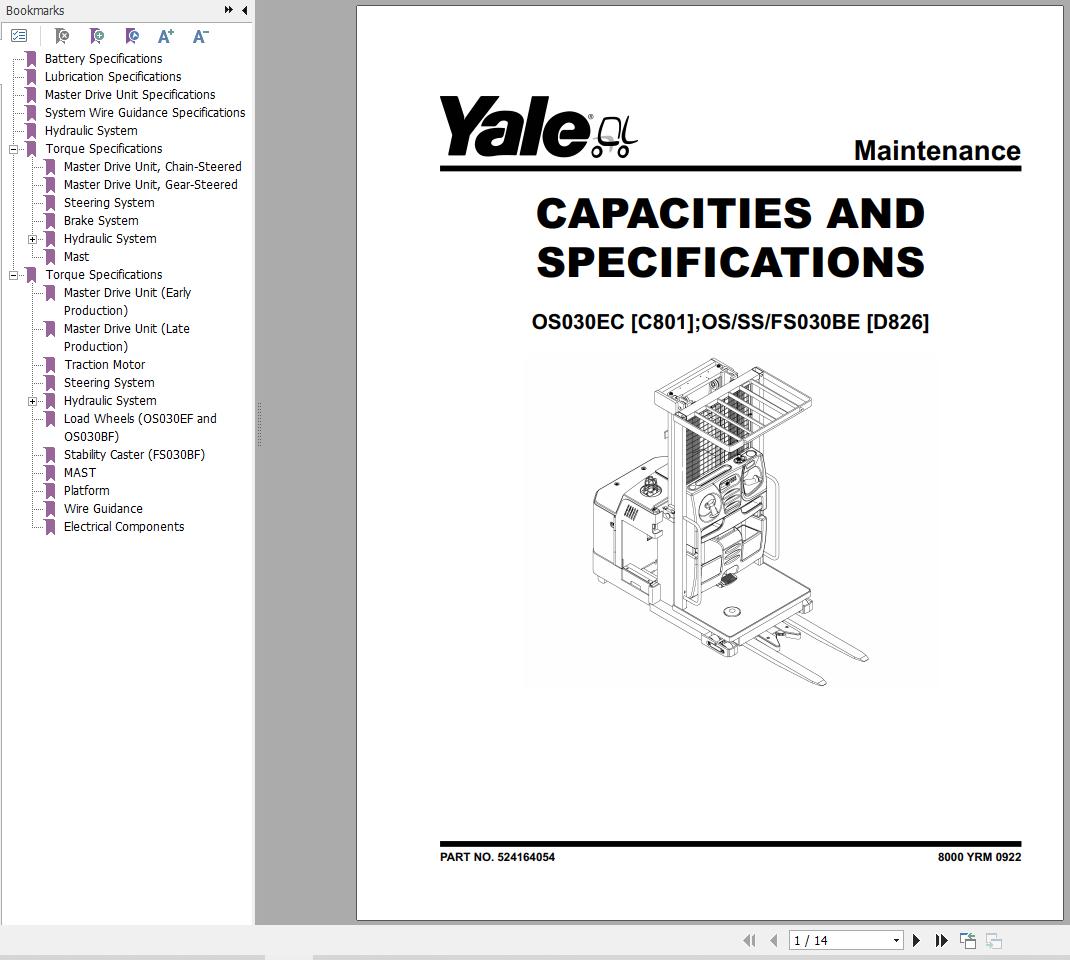

8000YRM0922 CAPACITIES AND SPECIFICATIONS 01-2019
8000YRM0923 DIAGRAMS (OS030EC ONLY) 10-2006
8000YRM0924 PERIODIC MAINTENANCE 12-2009
8000YRM0958 DIAGRAMS (OS/SS030BE ONLY) 02-2007
