Yale D861 (NDR035EB, NR045EB) Service Manual

Yale D861 (NDR035EB, NR045EB) Service Manual

Size: 18.4 MB
Machine:Forklift
Machine Model: Class 2 D861 (NDR035EB, NR045EB)

List Files:
DRIVETRAIN
0100YRM1615 FRAME 01-2016
0620YRM1621 A/C MOTOR REPAIR S/N A474N03000L=> S/N A497N030000L=> S/N D801N02161L=> S/N E826N01917L=> 12-2018
0630YRM1609 MASTER DRIVE UNIT S/N D801N03000L=> S/N A474N03000L=> S/N A497N030000L=> S/N E826N03000L=> 03-2021
1600YRM1610 STEERING SYSTEM 04-2014
1800YRM1188 BRAKE SYSTEM 01-2016
HYDRAULICS

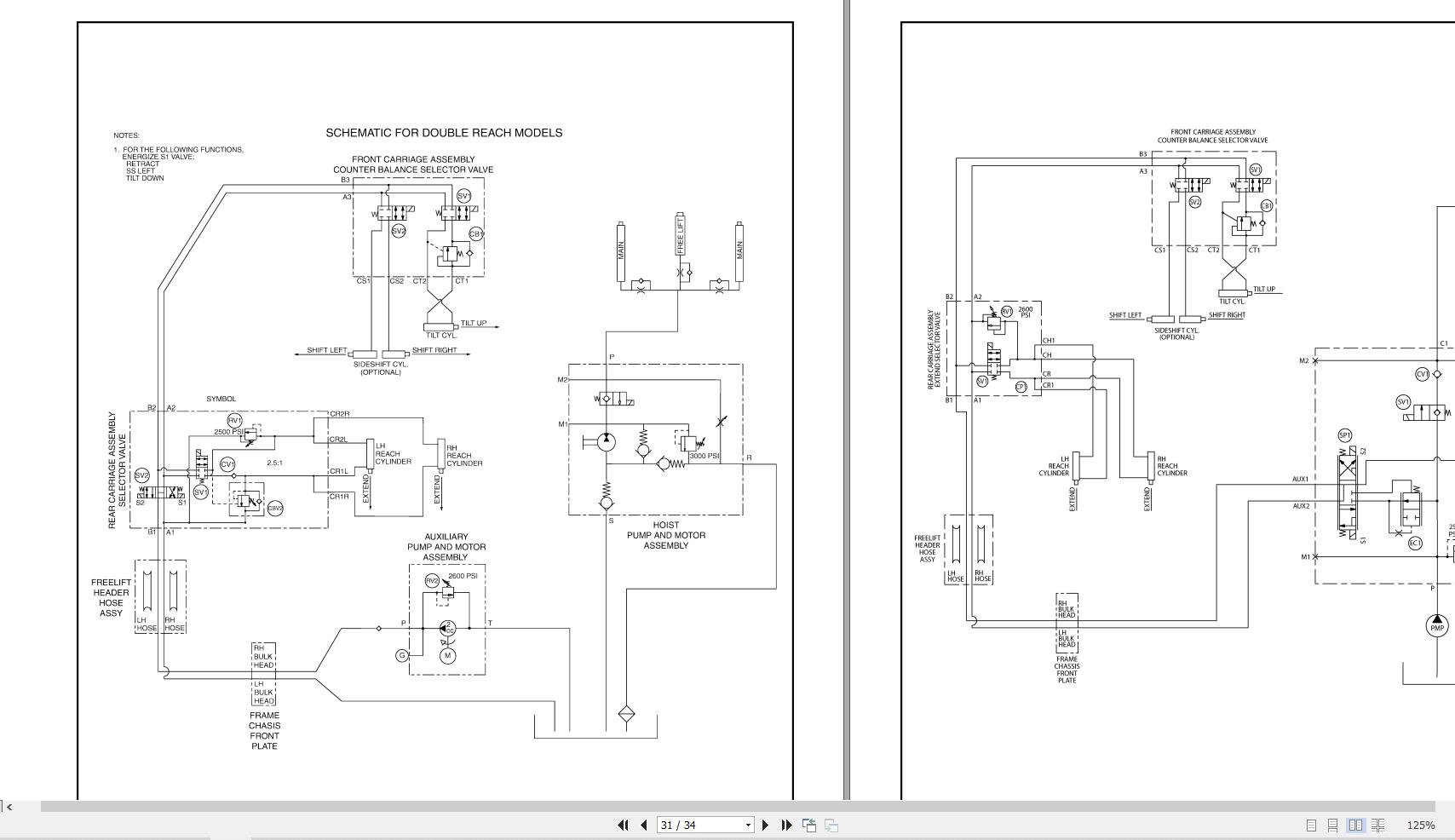

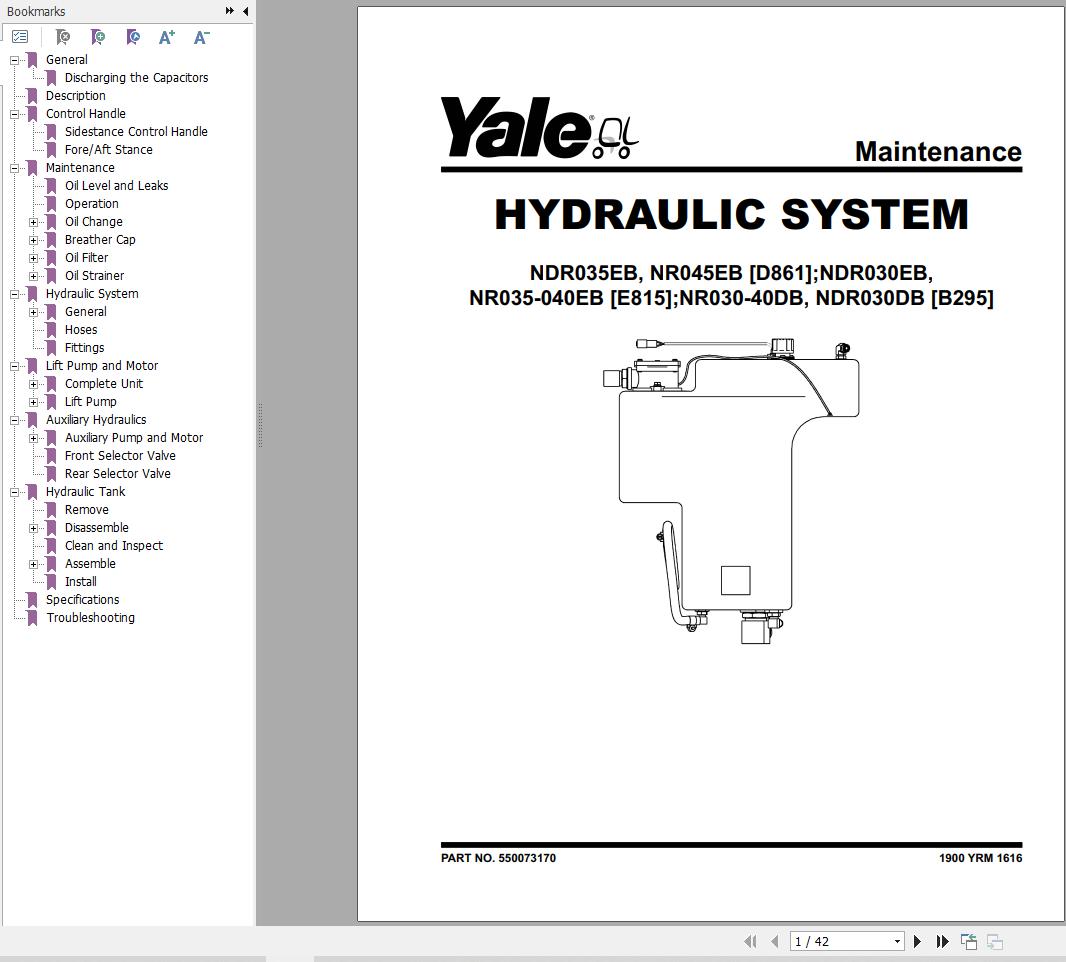

1900YRM1616 HYDRAULIC SYSTEM 12-2018
4000YRM0481 LIFT CYLINDERS 08-2016
4000YRM1194 MAST 01-2016
4000YRM1195 MAST 07-2019
4500YRM1196 REACH CARRIAGES 01-2016
ELECTRICAL

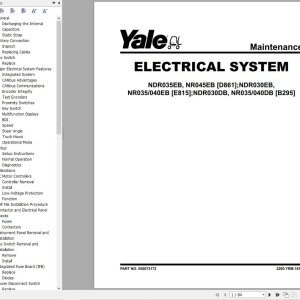

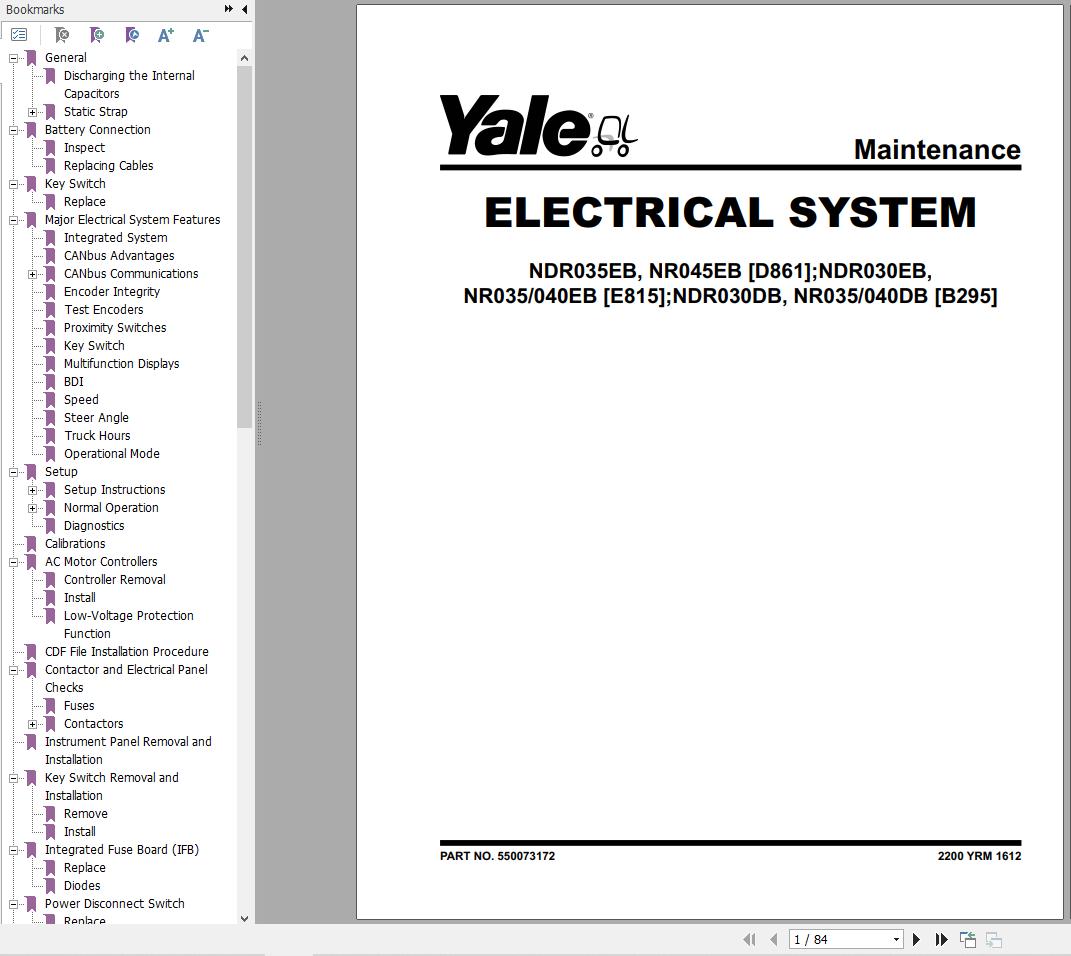

2200YRM1612 ELECTRICAL SYSTEM 07-2018
2200YRM1613 USER INTERFACE SUPERVISOR FUNCTIONS 02-2014
2200YRM1614 USER INTERFACE SERVICE TECHNICIAN 01-2019
2240YRM0001 INDUSTRIAL BATTERY 01-2023
REFERENCE MATERIAL
8000YRM0231 METRIC AND INCH (SAE) FASTENERS 02-2023
8000YRM1617 PERIODIC MAINTENANCE 02-2018
8000YRM1618 CAPACITIES AND SPECIFICATIONS 01-2016

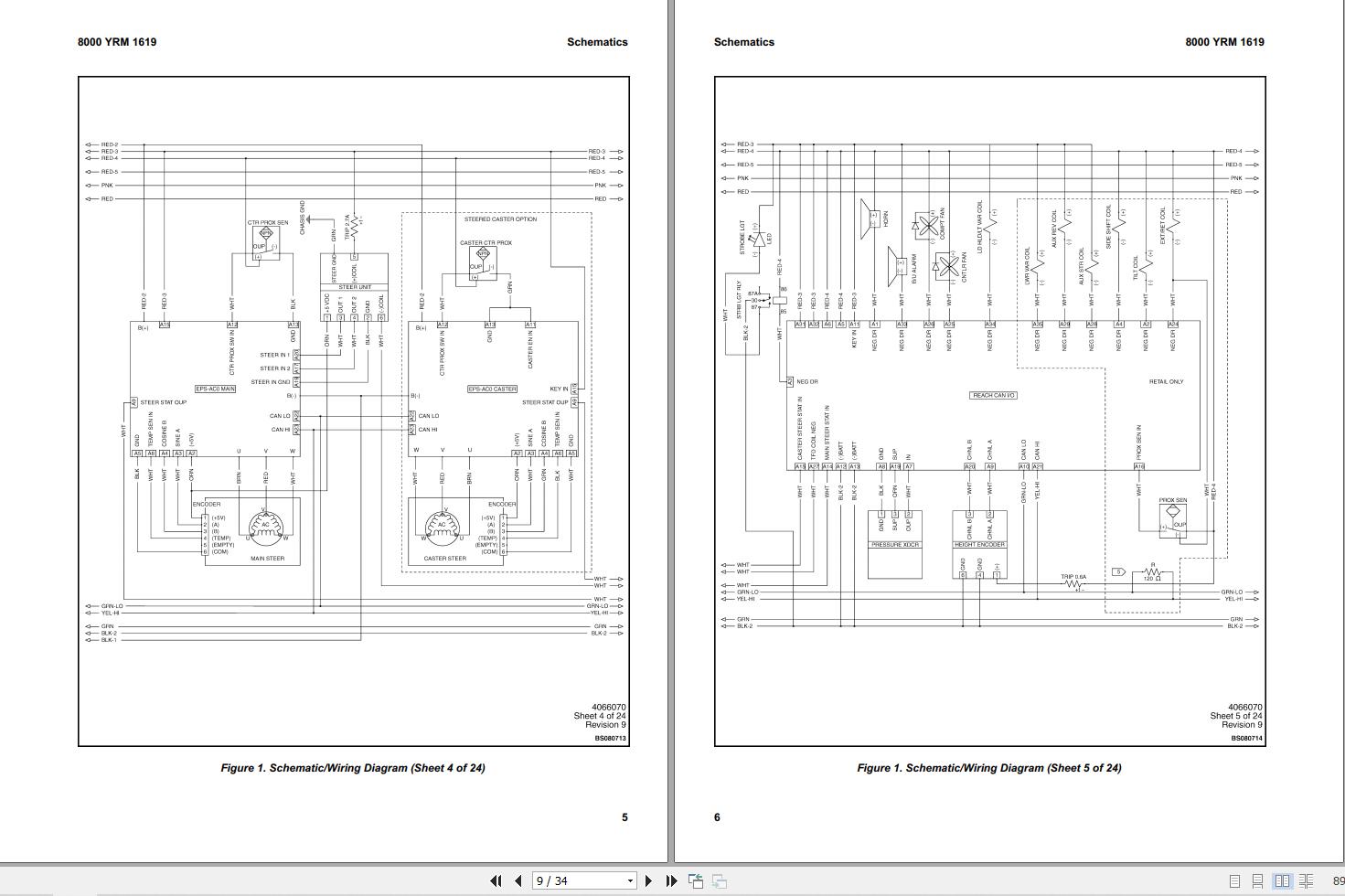

8000YRM1619 DIAGRAMS 09-2019
DIAGNOSTIC TROUBLESHOOTING
9000YRM1622 CONTROLLER DIAGNOSTICS 01-2022
