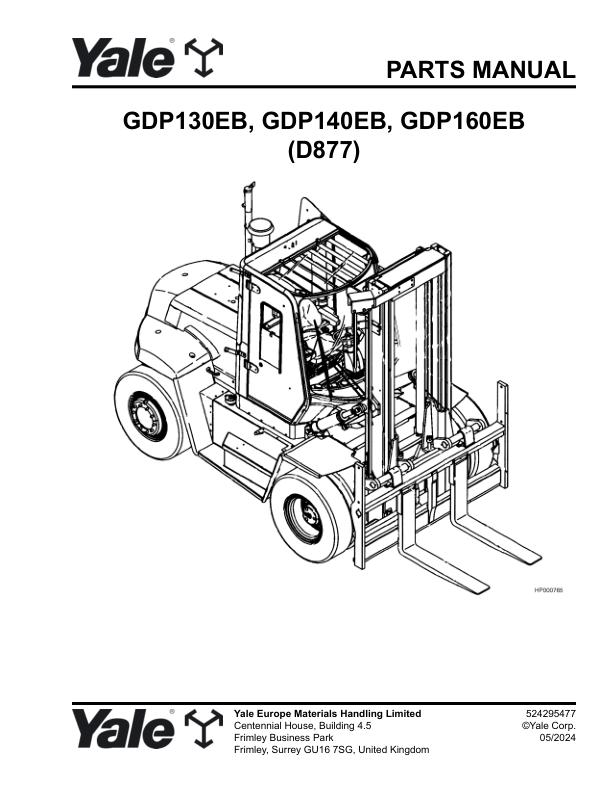

Yale D877E GDP130EB GDP140EB GDP160EB Parts Catalog 524295477 05-2024

Yale D877E GDP130EB GDP140EB GDP160EB Parts Catalog 524295477 05-2024

Size: 31.37 MB
Language: English

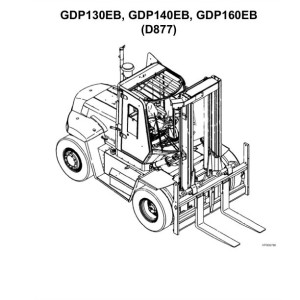

Machine: Forklift
Document: Parts Catalog
Machine Model: GDP130EB, GDP140EB, GDP160EB (D877)
Part Number: 524295477
Publication Date: 05-2024

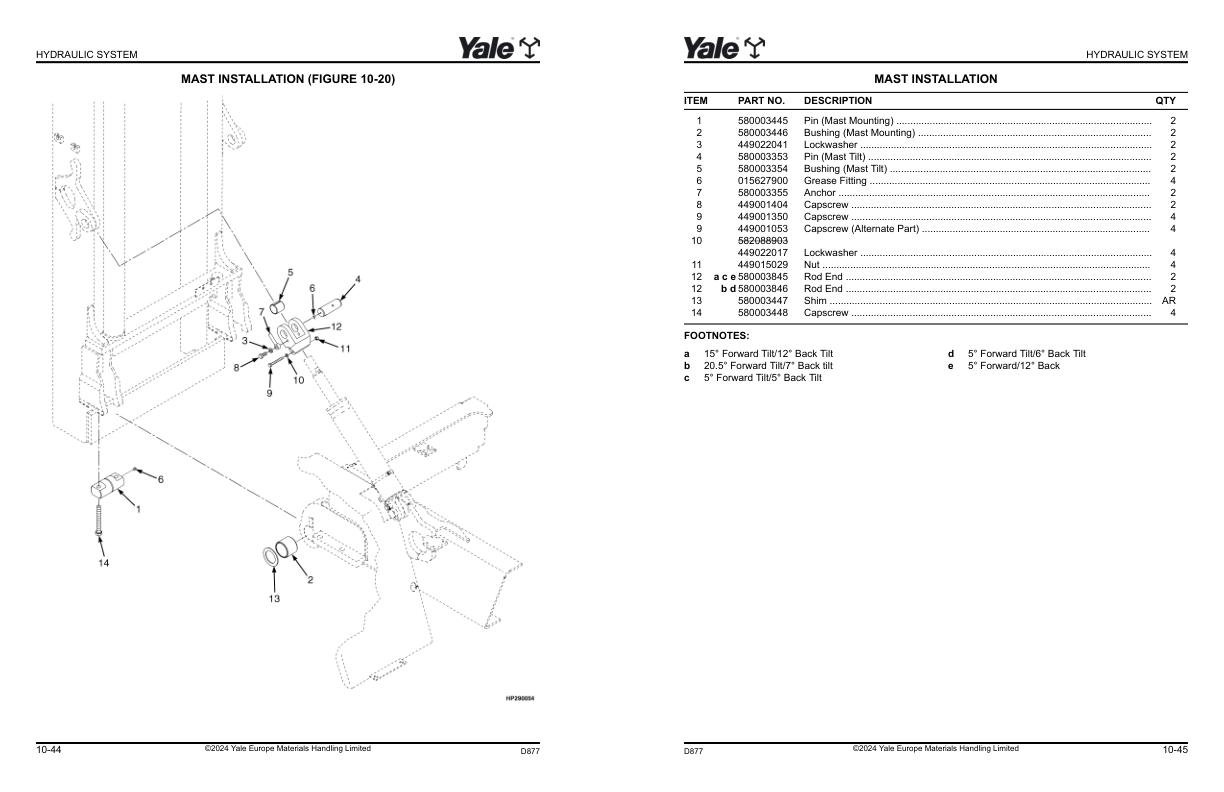

Pages: 914 Pages

The Bookmarks of Yale D877E GDP130EB GDP140EB GDP160EB Parts Catalog 524295477 05-2024:
General Truck
Floorplates
Hoods And Covers
Counterweight And Optional Lifting Eyes
Overhead Guard Wire Mesh
Cab Attaching Parts
Exterior Mirrors
Cab Door Attaching Parts
Cab Door Right Hand (→ S/N D877e01727g (Closed Cab With Heater/Closed Cab With Air Conditioning And Insulation)) (→ S/N D877e01726g (Closed Cab With Insulation))
Cab Door Right Hand (S/N D877e01728g → (Closed Cab With Heater/Closed Cab With Air Conditioning And Insulation)) (S/N D877e01727g → (Closed Cab With Insulation))
Cab Door Left Hand (→ S/N D877e01726g (Closed Cab With Insulation)) (→ S/N D877e01727g (Closed Cab With Heater/Closed Cab With Air Conditioning And Insulation))
Cab Door Left Hand (S/N D877e01727g → (Closed Cab With Insulation)) (S/N D877e01728g → (Closed Cab With Heater/Closed Cab With Air Conditioning And Insulation))
Cab Door Right Hand - Alternate Part
Cab Door Left Hand - Alternate Part
Main Window Assembly
Cab Main Door Window Right And Left Hand - Alternate Part
Cab Floormats
Handhold And Underfloor Cover Open Cab
Cab Windows Installation
Window Wiper System Washer Bottle Kit
Window Wiper System Rear And Roof Wiper Kits - And Front Wiper Options
Cab Sunshades
Dash Display
Rear Duct And Console
Cab Recirculating Fan
Indicator Display And Controls
Cab Electronic Controls And Panels
Cab And Tilt Cylinder Mounting
Tilt Cylinder Cab
Tilt Platform Assembly
Cab Tilt Pump Assembly Electric
Hand Pump
Electric Pump
Condenser And Attaching Parts Three-Fan System - Aurora
Condenser Assembly Three-Fan System - Aurora
Air Conditioning Compressor And Attaching Parts Diesel Engine - Mcc
Air Conditioning Compressor And Attaching Parts Lpg Engine - Mcc
Compressor Assembly With Two-Fan Condenser System - Mcc (S/N D877e01682f →)
Heater And Air Conditioner Mounting With Three-Fan Condenser System - Aurora
Heater Assembly With Three-Fan Condenser System - Aurora
Heater And Air Conditioner Assembly With Three-Fan Condenser System - Aurora
Heater And Air Duct With Two-Fan Condenser System - Mcc
Air Duct Assembly Heater - With Two-Fan Condenser System, Mcc (S/N D877e01682f →)
Heater Assembly With Two-Fan Condenser System - Mcc (S/N D877e01682f →)
Heater System With Two-Fan Condenser System - Mcc (S/N D877e01682f →)
Heating And Air Conditioning System Filter
Air Conditioner System Assembly With Two-Fan Condenser System - Mcc (S/N D877e01682f →)
Condenser System Two-Fan System - Mcc (S/N D877e01682f →)
Condenser Two-Fan System - Mcc (S/N D877e01682f →)
Air Conditioner System With Two-Fan Condenser System - Mcc (S/N D877e01682f →)
Air Conditioner Assembly With Two-Fan Condenser System - Mcc (S/N D877e01682f →)
Air Duct Assembly Air Conditioning - With Two-Fan Condenser System, Mcc (S/N D877e01682f →)
Control Panel Assembly With Two-Fan Condenser System - Mcc (S/N D877e01682f →)
Heater Hoses Diesel Engine
Heater Hoses Lpg Engine
Training Seat
Deluxe Suspension Seat
Suspension Kit Assembly
Seat Suspension Assembly Air
Seat Suspension Assembly Mechanical
Seat Suspension Mounting
Seat Assembly With Fabric Cover (→ 3/2010)
Seat Assembly With Fabric Cover (3/2010 →)
Seat Assembly With Vinyl Cover
Pivot Arm Assembly
Labels Main
Labels Lpg Fuel Truck
Labels Hydraulic Control - Joystick
Labels Hydraulic Control - Levers
Armrest Assembly
Insulation Mats And Air Duct Climate Control Cab
Air Duct Louver, Climate Control Cab
Seat Assembly Climate Control Cab
Climate Control System Mcc
Air Conditioner System Climate Control Cab - Mcc
Air Conditioner Climate Control Cab - Mcc
Cab Assembly Climate Control Cab
Load Backrest
Cab Sound Reduction
Radio Console And Attaching Parts
Engine Assembly - Diesel
Cooling System
Exhaust System
Air Compressor
Air Compressor Coolant Plumbing
Air Compressor Mounting
Air Heater
Air Intake Connection
Air Intake Hose
Air Intake Manifold
Air Transfer Connection
Alternator Support And Water Inlet
Alternator Support And Water Inlet
Belt Tensioner
Camshaft
Connecting Rods And Pistons
Connecting Rods And Pistons
Coolant Heater Starting Aid
Crankcase Breather
Crankshaft And Bearings
Crankshaft And Bearings
Cylinder Block
Cylinder Block
Cylinder Head
Engine Assembly
Engine Control Module
Engine Coolant Vent
Engine Mount
Engine Oil Cooler
Etr Module Wiring
Exhaust Manifold
Fan Drive And Mounting
Flywheel And Mounting
Flywheel Housing
Flywheel Housing
Flywheel Housing
Front Gear Cover
Lifting Brackets And Mounting
Lifting Brackets And Mounting
Lubricating Oil Pump
Oil Filler
Oil Filter
Oil Level Gauge
Oil Pan
Rear Gear Housing
Rear Gear Train Mounting
Rocker Levers
Thermostat
Torque Converter Cooler Plugs
Turbocharger
Turbocharger Plumbing
Turbocharger Plumbing
Valve Cover
Valve Tappets
Vibration Damper
Vibration Damper
Water Outlet Connection
Water Pump
Water Pump Drive
Engine Block Heater
Radiator Assembly Modine
Radiator Assembly Akg
Engine Assembly - Lpg
Cooling System
Exhaust System
Accessory Drive Belt And Tensioner
Accessory Hole Cover
Air Compressor Coolant Plumbing
Air Compressor Inlet Connection
Air Intake Connection
Cam Follower Cover
Camshaft
Crankcase Breather
Crankshaft And Main Bearings
Cylinder Block
Cylinder Head
Engine Assembly
Engine Mount
Engine Oil Cooler
Exhaust Gas Sensor Plumbing
Exhaust Manifold
Exhaust Outlet Connection
Fan Drive
Flywheel
Flywheel Housing
Front Gear Cover And Housing
Front Gear Train Accessory Drive
Intake Manifold
Lifting Bracket
Oil Level Gauge
Oil Pan
Oil Pump
Piston And Connecting Rod
Rocker Levers
Thermostat
Thermostat Housing
Turbocharger
Turbocharger Compressor Outlet Connection
Turbocharger Plumbing
Turbocharger Assembly
Valve Cover
Valve Tappet
Vibration Damper
Water Inlet Connection
Water Outlet Connection
Water Pump
Radiator Assembly Modine
Radiator Assembly Akg
Air Compressor Dry Brake - Cummins Lpg
Fuel System
Fuel System Lpg
Fuel System Diesel
Air Intake System Lpg
Air Intake System Diesel - Dry Brake
Air Intake System Diesel - Wet Brake
Air Cleaner Assembly
Foot Directional Control Pedal Assembly
Throttle Pedal Linkage
Fuel System Accessories Cummins Lpg
Remote Fuel Filter Cummins Diesel (→ S/N D877e01677f (Wet Brakes)) (→ S/N D877e01699f (Dry Brakes))
Remote Fuel Filter Cummins Diesel (S/N D877e01678f → (Wet Brakes)) (S/N D877e01700f → (Dry Brakes))
Fuel Control Module Cummins Lpg
Fuel Filter Cummins Lpg
Fuel Injector Plumbing Cummins Diesel
Fuel Injection Pump Cummins Diesel
Fuel Injector Cummins Diesel
Fuel Filter Plumbing Cummins Diesel
Fuel Filter Cummins Diesel
Fuel Inlet Fitting Cummins Diesel
Fuel Rail System Cummins Diesel (→ S/N D877e01677f (Wet Brakes)) (→ S/N D877e01699f (Dry Brakes))
Fuel Rail System Cummins Diesel (S/N D877e01678f → (Wet Brakes)) (S/N D877e01700f → (Dry Brakes))
Electrical System
Electrical System Diesel Engine
Electrical System Lpg Engine
Battery Disconnect
Light Switches
Dc-Dc Converter And Attaching Parts
Relays And Fuses
Joystick Assembly Twistlocks
Control Panel Air Conditioner
Control Panel Heater
Engine Control System Cummins Diesel (→ S/N D877e01677f (Wet Brakes)) (→ S/N D877e01699f (Dry Brakes))
Engine Control System Cummins Diesel (S/N D877e01678f → (Wet Brakes)) (S/N D877e01700f → (Dry Brakes))
Engine Control System Cummins Lpg
Starter Motor Cummins Diesel
Starter Motor Cummins Lpg
Alternator And Mounting Cummins Diesel (→ S/N D877e01677f (Wet Brakes)) (→ S/N D877e01699f (Dry Brakes))
Alternator And Mounting Cummins Diesel (S/N D877e01678f → (Wet Brakes)) (S/N D877e01700f → (Dry Brakes))
Alternator And Mounting Cummins Lpg
Engine Ignition System Cummins Lpg
Second 12v Socket Option Climate Control Cab
Electric Horn
Wire Harness Air Dryer
Wire Harness Armrest - Closed Cab
Wire Harness Armrest - Open Cab
Wire Harness Back-Up Alarm
Wire Harness Brake Temperature
Wire Harness Cab Lights
Wire Harness Cab Side Console - Page 1 Of 3
Wire Harness Cab Side Console - Page 2 Of 3
Wire Harness Cab Side Console - Page 3 Of 3
Wire Harness Cab Tilt
Wire Harness Cab Underfloor
Wire Harness Chassis, Lpg - Page 1 Of 2
Wire Harness Chassis, Lpg - Page 2 Of 2
Wire Harness Chassis, Diesel - Page 1 Of 2
Wire Harness Chassis, Diesel - Page 2 Of 2
Wire Harness Closed Cab
Wire Harness Front End
Wire Harness Front Lights - With Front Fender And Mast Worklights
Wire Harness Front Lights
Wire Harness Hydraulic Oil Temperature
Wire Harness Mast Light Extension - Right Hand
Wire Harness Mast Light Extension - Left Hand
Wire Harness Mast Worklight Extension
Wire Harness Open Cab
Wire Harness Rear Drive Light Extension
Wire Harness Rear Wiper
Wire Harness Rear Work Lights
Wire Harness Shift Lever
Wire Harness Steering Column
Wire Harness Strobe Light
Wire Harness Tail Lights
Wire Harness Two Stage Limited Free-Lift
Wire Harness Window Wash Pumps
Control Panel Assembly Climate Control
Steering System
Steer Axle
Steer Cylinder
Steer Column Assembly
Steering Column
Steering Hand Pump Assembly
Steer Tires And Wheels Bergougnan - Solid Tire
Steer Tires And Wheels Bridgestone
Steer Tires And Wheels Michelin
Steer Tires And Wheels Trelleborg
Brake System
Park Brake Solenoid Valve
Wet Brake System Lpg Engine
Wet Brake System Diesel Engine
Dry Brake System
Brake Assembly Wet Brake
Brake Assembly Dry Brake
Drain Valve Dry Brake
Brake Valve Wet Brake
Brake Valve Dry Brake
Air Dryer System Diesel Engine - Dry Brake
Air Dryer System Lpg Engine - Dry Brake
Air Dryer Assembly
Hydraulic Gear Pump Lpg Engine - Wet Brake
Hydraulic Gear Pump Diesel Engine - Wet Brake
Brake Accumulator
Accumulator Charge Valve
Brake And Inching Pedal Linkage
Drive Axle
Drive Tires And Wheels Bergougnan - Solid Tire
Drive Tires And Wheels Bridgestone
Drive Tires And Wheels Michelin
Drive Tires And Wheels Trelleborg
Axle Housing And Attaching Parts
Differential And Carrier Wet Brake
Differential And Carrier Dry Brake
Hub And Shaft Assembly Dry Brake
Hub And Shaft Assembly Wet Brake
Park Brake Wet Brake
Transmission
Universal Shaft
Auxiliary Pump Drive
Charge Pump And Filter Assembly
Transmission Control Valve
Drive Gear
Drive Plate
Forward Clutch
Forward Clutch
Gear Clutch Installation
Reverse Idler Shaft
Low Clutch
Low Clutch
Output Flange
Output Shaft
Output Shaft
Reverse And Second Clutch
Third Clutch
Torque Converter Assembly
Transmission Case
Transmission Mount And Attaching Parts Lpg Engine
Transmission Mount And Attaching Parts Diesel Engine
Turbine Shaft And Stator Support
Torque Converter Housing And Attaching Parts
Torque Converter Housing And Attaching Parts
Hydraulic System
Hydraulic Supply And Return Page 1 Of 3
Hydraulic Supply And Return Page 2 Of 3
Hydraulic Supply And Return Page 3 Of 3
Hydraulic Tank And Attaching Parts
Hydraulic Tank And Attaching Parts
Hydraulic Control Valve Assembly
Hydraulic Control Valve And Attaching Parts Page 1 Of 2
Hydraulic Control Valve And Attaching Parts Page 2 Of 2
Pilot Valve Assembly
End Cap Parts Lift Section
Hydraulic Controls Levers
Hydraulic Controls Joystick
Hydraulic Pump
Lift Accumulator Assembly
Lift Accumulator And Attaching Parts
Tilt Cylinder Assembly
Tilt Cylinder And Attaching Parts
Electronic Lever Assembly
Electronic Lever Assembly With Clamp Attachment
Mast Installation
Mast-Two Stage Limited Free-Lift
Outer Mast
Inner Mast
Lift
Lift Cylinder
Carriage Four, Five, And Six Function
Carriage Individual Fork Positioner - Four Function
Carriage Simultaneous Fork Positioner - Three Function
Carriage Three Function
Mast-Three Stage Full Free-Lift
Mast Assembly Page 1 Of 3
Mast Assembly Page 2 Of 3
Mast Assembly Page 3 Of 3
Free-Lift Cylinder
Main Lift Cylinder
Carriage Four, Five, And Six Function
Standard Pin Carriage Four, Five, And Six Function
Carriage Individual Fork Positioner - Four Function
Carriage Simultaneous Fork Positioner - Three Function
Carriage Three Function
Attachments And Header Hose Group
Directional Control Valve
Forks
Fork Positioning Cylinder
Header Hose Three Stage Full Free-Lift
Header Hose Two Stage Limited Free-Lift (→ S/N D877e01746h)
Header Hose Two Stage - Limited Free-Lift (S/N D877e01747h →)
Side-Shift Carriage Dual Function With Fork Positioner - Two Stage Limited Free-Lift
Side-Shift Carriage Four, Five, And Six Function - Two Stage Limited Free-Lift
Side-Shift Carriage Four, Five, And Six Function - Three Stage Full Free-Lift
Side-Shift Carriage Individual Fork Positioner (Five Function) - Two Stage Limited Free-Lift
Side-Shift Carriage Individual Fork Positioner (Five Function) - Three Stage Full Free-Lift
Side-Shift Carriage Simultaneous Fork Positioner (Four Function) - Two Stage Limited Free-Lift
Side-Shift Carriage Simultaneous Fork Positioner (Four Function) - Three Stage Full Free-Lift
Side-Shift Carriage Three Function - Three Stage Full Free-Lift
Side-Shift Carriage Three Function - Two Stage Limited Free-Lift
Side-Shift Cylinder Dual Function With Fork Positioner
Side-Shift Cylinder Three Stage Full Free-Lift
Side-Shift Cylinder Two Stage Limited Free-Lift
Options
Directional Marker
Front Fender Lights
Tail Light Assembly
Alarm
Strobe Light
Mast Worklights Two And Three Stage Mast
Rear Work Lights
Sound Reduction Hood
Heated Top Window Climate Control Cab
Lifting Eyes
Lights Work - Halogen
Lights Work - Hid
Accessory Mounting Post
Accessory Mounting Post Alternate Assembly
Map Reading Light Closed Cab
Diagnostics Interface Cable
Numerical Index
User Support Information

#More Product: Yale Forklift Operators Manual, Parts Catalog, Service Manual
