Yanmar 4TNV98CT-XNGL Stage 5 Engine Parts Manual 50940746A

Yanmar 4TNV98CT-XNGL Stage 5 Engine Parts Manual 50940746A

Size: 10.70 MB
Language: English
Machine: Engine
Machine Model: 4TNV98CT-XNGL Stage 5
Serial Number: 50353124
Application Model: Gehl R105, RT105 Mustang / Manitou 1050R, 1050RT Track / Skid Loaders
Part Number: 50940746A
Publication Date: 2022
Pages: 59 Pages

The Bookmarks of Yanmar 4TNV98CT-XNGL Stage 5 Engine Parts Manual 50940746A:
Fig.1. Cylinder Block
Fig.2. Gear Housing
Fig.3. Flywheel Housing & Oil Sump

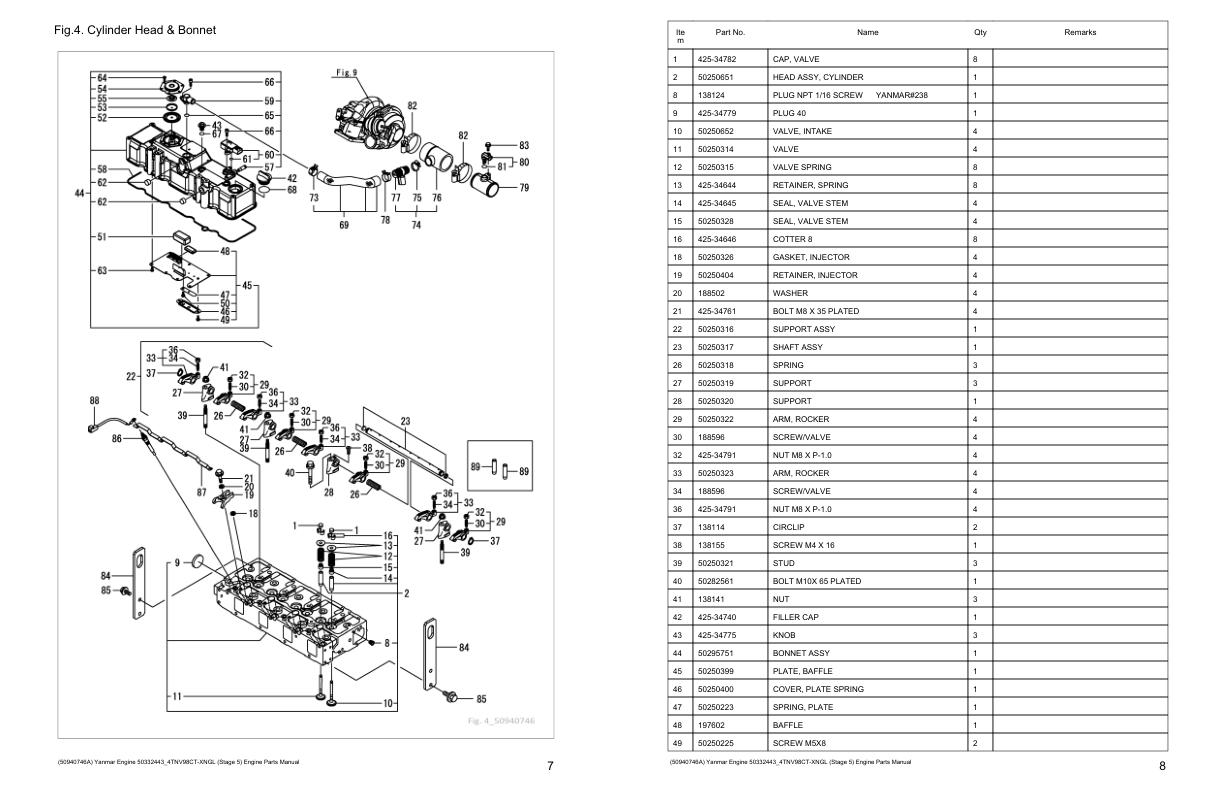

Fig.4. Cylinder Head & Bonnet
Fig.5. Suction Manifold
Fig.6. Exhaust Manifold
Fig.7. Diesel Particulate Filter (DPF)
Fig.8. Camshaft & Driving Gear
Fig.9. Turbine
Fig.10. Crankshaft & Piston
Fig.11. Lub. Oil System
Fig.12. Lub. Oil Pipe
Fig.13. Cooling Water System
Fig.14. Fuel Supply Pump
Fig.15. Fuel Injection Valve
Fig.16. Fuel Pipe
Fig.17. Starter Motor
Fig.18. Electronic Control Unit (ECU)
Fig.19. Electric Parts
Fig.20. Accessory
Fig.21. Gasket Set
Appendix A:Pages Index
Appendix B:Parts Index
