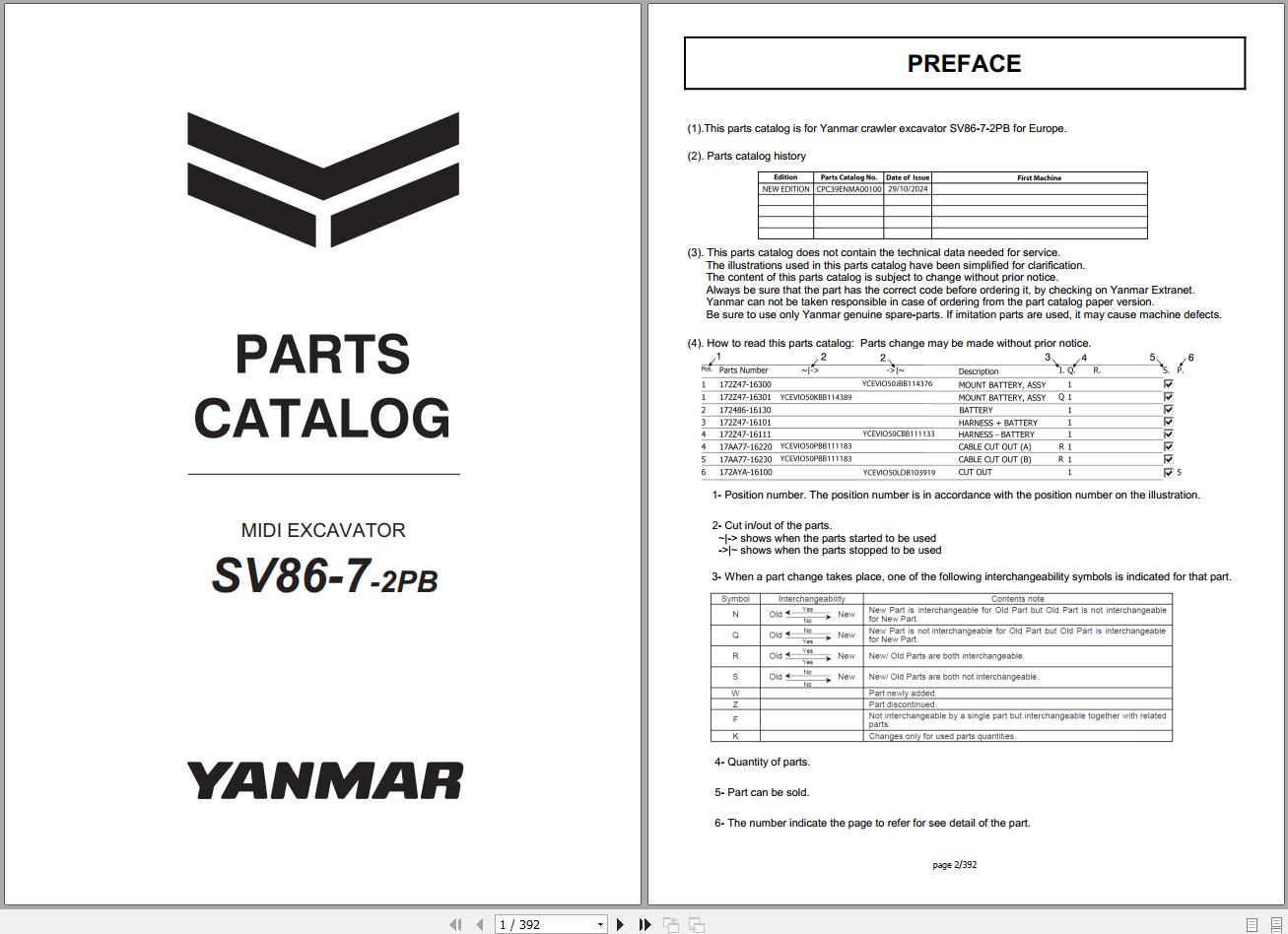

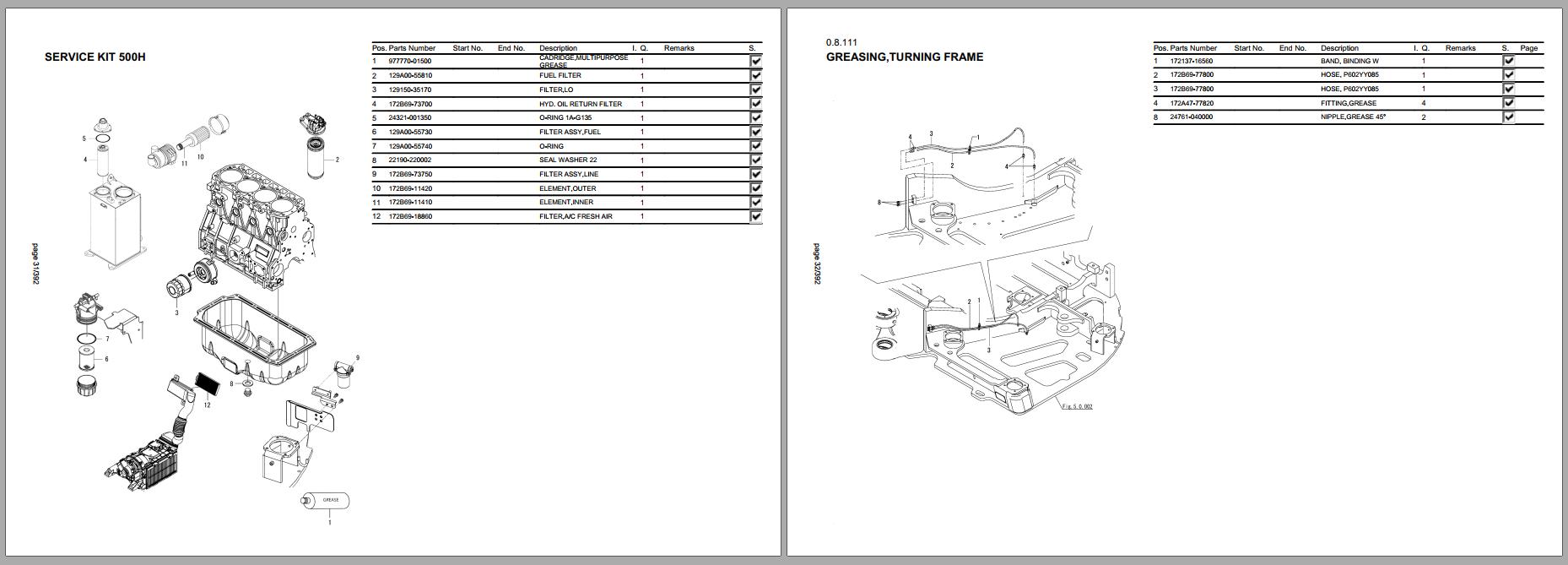

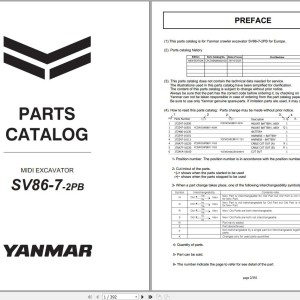

Yanmar SV86-7 2PB Parts Catalog CPC39ENMA00100

Yanmar SV86-7 2PB Parts Catalog CPC39ENMA00100

Size: 24.01 MB
Brand: Yanmar
Machine: Excavator
Document: Parts Manual
Machine Model: Yanmar SV86-7 2PB Mini Excavator
Part Number: CPC39ENMA00100
Publication Date: 2024
Page: 392 Pages

Contents:

YPP,USAGE HELP
ACCESSORIES
PAINTING
VEHICLE PAINTED COLOR
LABEL
MACHINE LABEL
TOOL,OPTION & KIT
MACHINE TOOLS
SERVICE PARTS
KIT PER HOUR
GREASING,TURNING FRAME
GREASING 2PB
ENGINE & ELECTRIC
ENGINE
CYLINDER BLOCK
GEAR HOUSING
CARTERS
CYLINDER HEAD & BONNET
SUCTION MANIFOLD
EXHAUST MANIFOLD
DPF
CAMSHAFT
TURBINE
CRANKSHAFT & PISTON
LUB. OIL SYSTEM
LUB. OIL PIPE
COOLING WATER SYSTEM
FUEL SUPPLY PUMP
FUEL INJECTION VALVE
FUEL PIPE
STARTER MOTOR
GENERATOR
ECU
ELECTRIC PARTS
GASKET SET
ENGINE ACCESSORY
SILENCER
AIR CLEANER
GENERATOR
ENG & RADIATOR MOUNT
ENGINE MOUNT
RADIATOR
RADIATOR MOUNT
SUB TANK
FUEL OIL SYSTEM
FUEL TANK
FUEL LINE
FUEL PUMP
FUEL PUMP MOUNT
BATTERY & WIRING
ELECTRIC WIRING,ENGINE
ELECTRIC WIRING,SEAT MOUNT
ELECTRIC WIRING,WORK LAMP
ELECTRIC WIRING,AUX
ELECTRIC SYSTEM
STARTER SWITCH
INDICATOR BOX
TRAVEL ALARM
DISPLAY
ELECTRONIC CONTROL UNIT
CONTROLLER,AUX
CONTROLLER,AUX. 3
HORN DISPLACEMENT,OPTION & KIT
AIR CONDITIONING
AIR CONDITIONING,CABIN
AIR CONDITIONING,PIPING
AIR CONDITIONING,ENGINE
AIR CONDITIONING,CONDENSER
TRAVEL DEVICE
IDLER & ROLLER
IDLER
CRAWLER ADJUST
SPROCKET
TRACK ROLLER
CARRIER ROLLER
CONTROL DEVICE
HYDRAULIC CONTROL
LOCK LEVER
ARMREST
TRAVEL LEVER
PEDAL STAND,OPTION & KIT
BLADE LEVER
SWING PEDAL
FRAME
FRAME
TRAVEL FRAME
TURNING FRAME
CRAWLER GUARD
COUNTERWEIGHT
2 PIECE BOOM PEDAL
COUNTERWEIGHT ADD.
TURNING SYSTEM
SWING BEARING
COWLING .
COVER FRAME
COVER CENTER 1
COVER CENTER 2
COVER CENTER 3
COVER CENTER 4
COVER SEAT MOUNT
COVER TRAVEL FRAME
COVER TURNING FRAME
FLOOR MAT
TAIL COVER
GUARD TURNING FRAME LEFT
GUARD TURNING FRAME RIGHT
COVER DASHBOARD
DASHBOARD
SEAT
SEAT MOUNT
SEAT PLATE
SEAT SLIDE
BONNET
BONNET,FRONT
BONNET,REAR
BONNET,LEFT
BONNET,RIGHT
BONNET,MOUNT
CANOPY & CABIN
CABIN MOUNT
HYDRAULIC SYSTEM
COMPONENT MOUNTING
CONTROL VALVE BRACKET
HYDRAULIC PUMP MOUNT
CYLINDER
BOOM CYLINDER
ARM CYLINDER
BUCKET CYLINDER
SWING CYLINDER
BLADE CYLINDER
2 PIECE BOOM CYLINDER
HYDRAULIC COMPONENT
HYDRAULIC OIL PUMP
SOLENOID VALVE,PILOT - ACCUMULATOR
SWIVEL JOINT
TRAVEL MOTOR
TURNING MOTOR
LINE FILTER
HYDRAULIC COMPONENT
REMOTE C/V,BLADE
REMOTE C/V,TRAVEL
REMOTE C/V,SWING
REMOTE C/V,2PB
SOL.VALVE,PRESSURE SW.
SOL.VALVE,ESS
SOL.VALVE,AUX.2 - 1/2
SOL.VALVE,AUX. 2 -2/2
SOL.VALVE,AUX.3
SAFTEY VALVE,BOOM
SAFETY VALVE,ARM
HOLD VALVE,BLADE
SAFETY VALVE,2PB
TANK
HYDRAULIC OIL TANK
PIPING
TANK - PUMP - SWING CYLINDER
PUMP - MCV - OIL COOLER
SWIVEL JOINT
SWIVEL JOINT - TRAVEL MOTOR - BLADE CYL.
CONTROL VALVE - TURNING MOTOR
CONTROL VALVE - JOYSTICK
SOLENOID VALVE
SOLENOID VALVE AUX.3
CONTROL PIPING TRAVEL - SWING PEDAL
CONTROL PIPING AUX.1
CONTROL PIPING AUX.2
CONTROL PIPING, 2PB
FRAME END,AUX.1
FRAME END,AUX.2
FRAME END,AUX.3
BOOM CYLYNDER - TURNING MOT. - TANK
ARM CYLINDER - BUCKET CYLINDER
SAFETY VALVE
SAFETY VALVE,BLADE
HOLD VALVE,BLADE
WORK EQUIPMENT 1
BACK HOE
BOOM
BOOM BRACKET
PLUG
BUCKET ARM & LINK
BUCKET LINK
BUCKET PIN
WORK EQUIPMENT 2
OUT RIGGER & BLADE
OUT RIGGER & BLADE
DOCUMENTS
OPERATION MANUAL
PARTS CATALOG
SERVICE MANUAL
